(35.114.010) - STD + VAR - 334957, 390831 - HYDRAULIC LIFT, REAR, CONTROL VALVE

Запчасти Case IH JX95HC PLUS (35.114.010) - STD + VAR - 334957, 390831 - HYDRAULIC LIFT, REAR, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

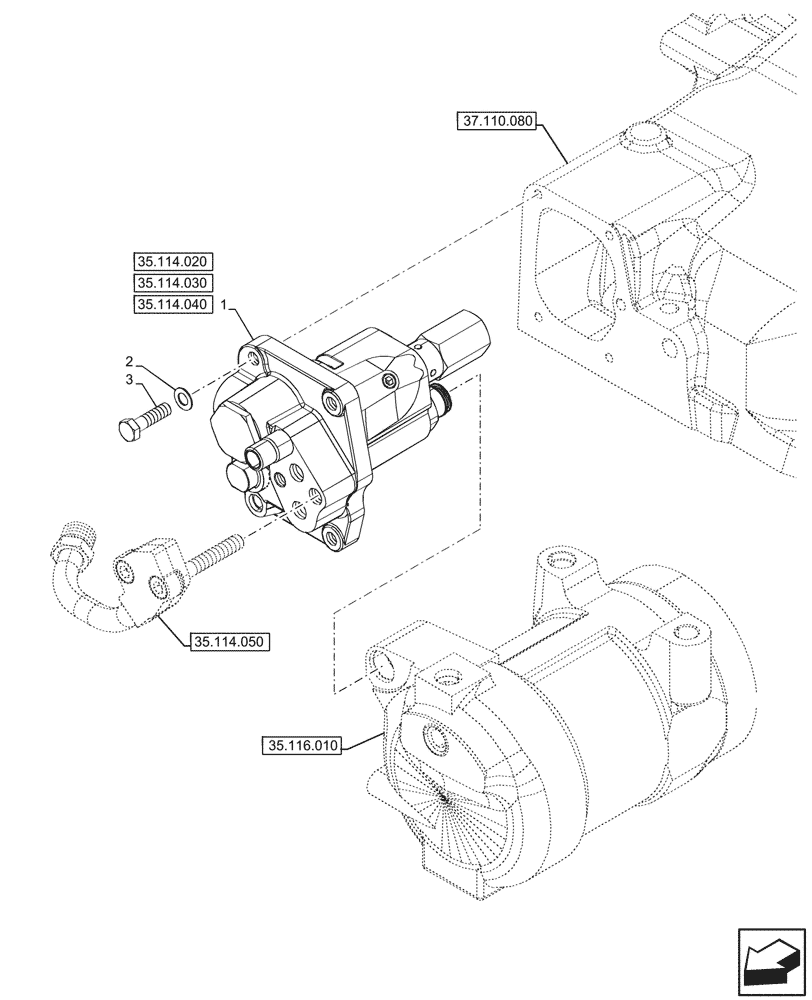

Схема запчастей Case IH JX95HC PLUS - (35.114.010) - STD + VAR - 334957, 390831 - HYDRAULIC LIFT, REAR, CONTROL VALVE (35) - HYDRAULIC SYSTEMS
2
35.114.040
35.114.050
35.114.030
35.116.010
1
3
37.110.080
35.114.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5089469

CONTROL VALVE

ASSY

1шт.

2

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

3

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 3
