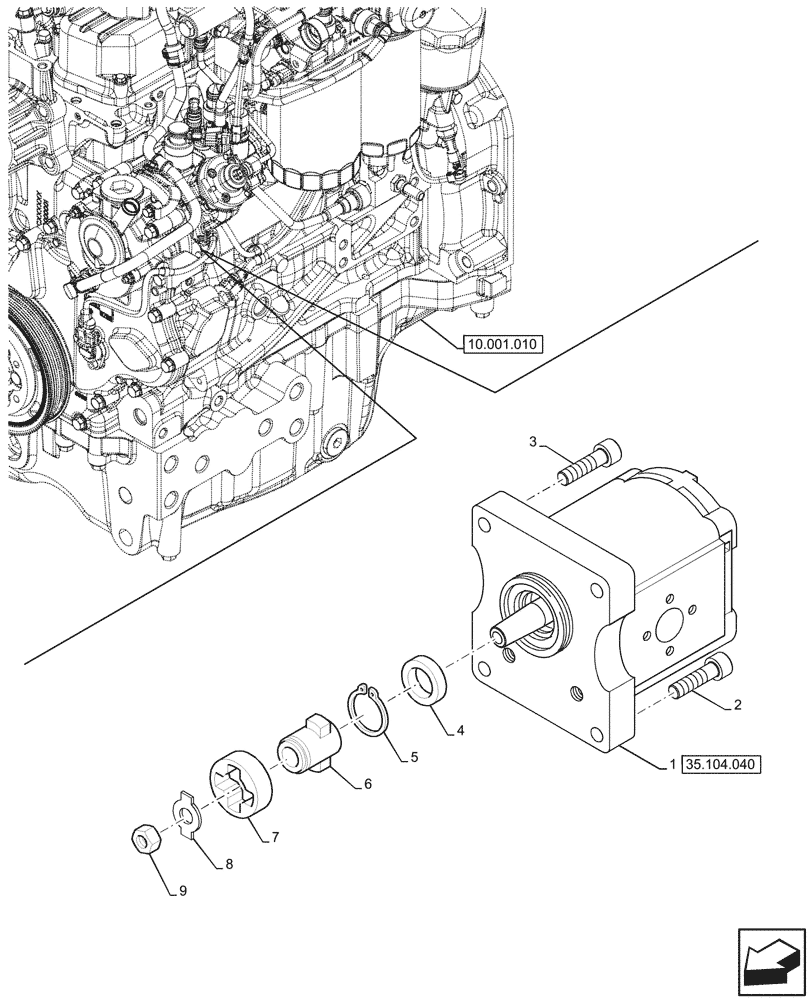

Запчасти Case IH JX95HC PLUS (35.104.030) - VAR - 334314 - HYDROSTATIC PUMP (51.7L/MIN - 13.6 GPM) (35) - HYDRAULIC SYSTEMS

1

87325371

HYDRAULIC PUMP

19CC/REV, ASSY

1шт.

2

10903021

SCREW,Hex, M6 x 35mm, Cl 8.8

2шт.

3

10902821

SCREW,Hex, M6 x 30mm, Cl 8.8

2шт.

4

5118568

CENTERING RING

1шт.

5

13398376

SNAP RING,M40, Int

1шт.

6

5118570

HUB

1шт.

7

5118569

COUPLING

1шт.

8

8273920

LOCK WASHER

1шт.

9

5093733

NUT

1шт.
