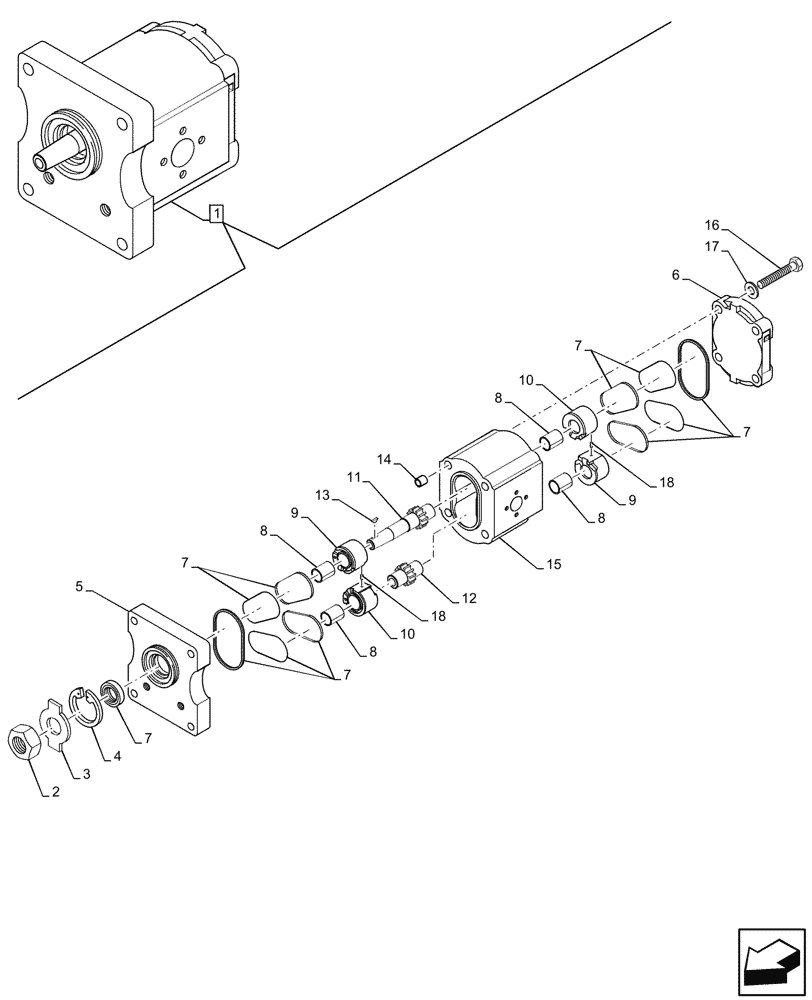

Запчасти Case IH JX95HC PLUS (35.104.020) - STD + VAR - 390257 - HYDRAULIC PUMP (40.1L/MIN - 10.8 GPM), COMPONENTS (35) - HYDRAULIC SYSTEMS

1

87325370

HYDRAULIC PUMP

14CC/REV, ASSY, Incl 2 - 18

1шт.

2

8273919

NUT

1шт.

3

8273920

LOCK WASHER

1шт.

4

NSS

NOT SOLD SEPARAT

Circlip, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Pump Mounting Flange, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Pump Cover, Incl in 1

1шт.

7

87341173

SEAL KIT

1шт.

8

NSS

NOT SOLD SEPARAT

Du Liner, Incl in 1

4шт.

9

NSS

NOT SOLD SEPARAT

RH, Bush Blank, Incl in 1

2шт.

10

NSS

NOT SOLD SEPARAT

LH, Bush Blank, Incl in 1

2шт.

11

NSS

NOT SOLD SEPARAT

Drive Sahft & Gear, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Driven Gear, Incl in 1

1шт.

13

8273918

KEY

1шт.

14

NSS

NOT SOLD SEPARAT

Hollow Dowel, Incl in 1

2шт.

15

NSS

NOT SOLD SEPARAT

Pump Body, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

4шт.

17

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

4шт.

18

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

2шт.
