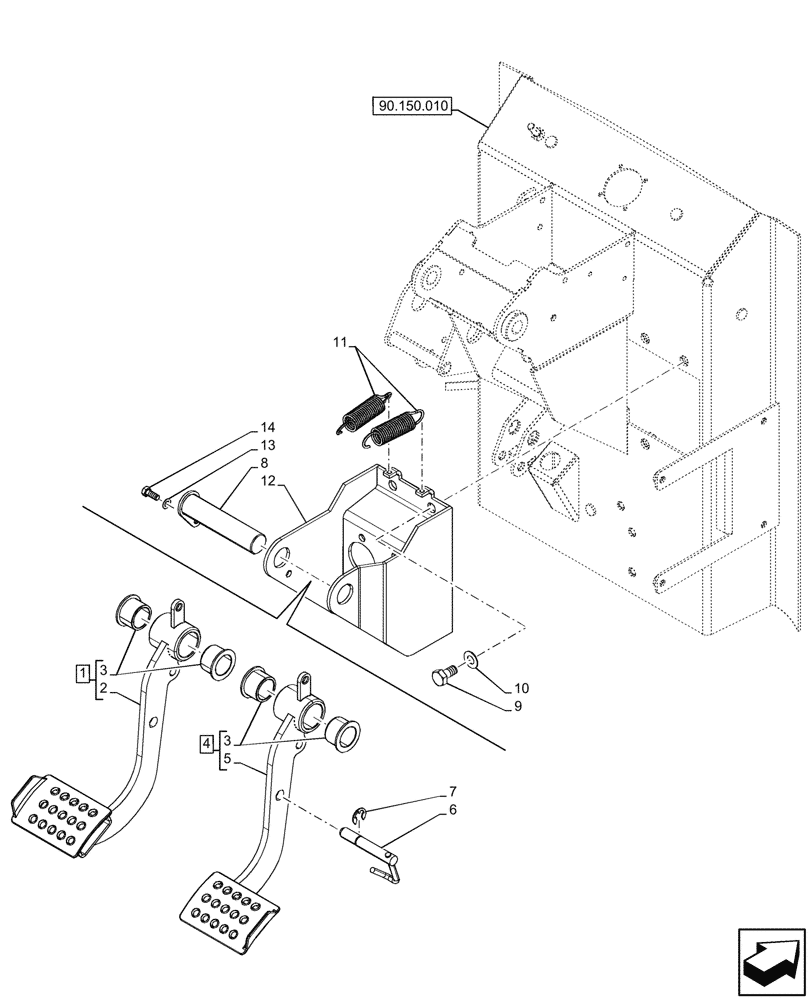

Запчасти Case IH JX95HC PLUS (33.202.080) - STD + VAR - 391606 - BRAKE, PEDAL, LEVER & BRACKET (33) - BRAKES & CONTROLS

1

5097737

PEDAL

LH, ASSY, Incl 2, 3 (Qty 2)

1шт.

2

NSS

NOT SOLD SEPARAT

Pedal, LH, Incl in 1

1шт.

3

5097550

BUSHING,25.4mm ID x 38mm OD x 22mm L

4шт.

4

5097633

PEDAL

RH, ASSY, Incl 3 (Qty 2), 5

1шт.

5

NSS

NOT SOLD SEPARAT

Pedal, RH, Incl in 4

1шт.

6

84483539

PIN

1шт.

7

11088180

CIRCLIP,M11, Stainless

1шт.

8

5097582

SHAFT

1шт.

9

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

10

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

11

5153180

SPRING,21mm OD x 84mm L

2шт.

12

5097543

SUPPORT

1шт.

13

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

14

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

1шт.
