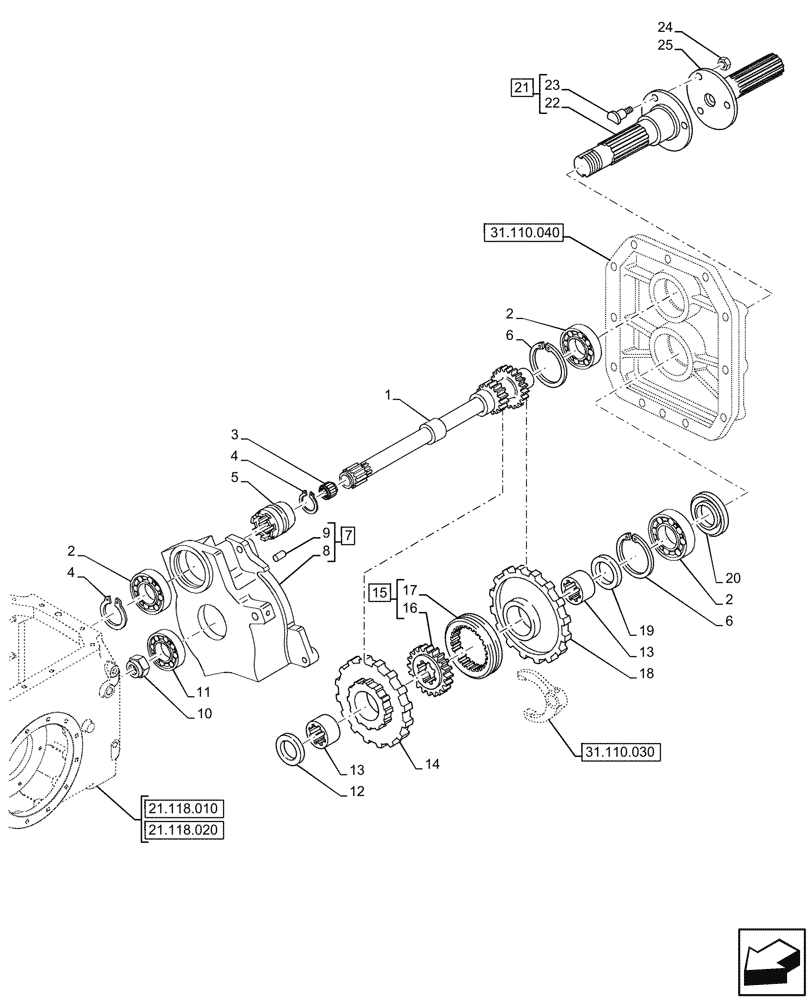

Запчасти Case IH JX95HC PLUS (31.110.020) - STD + VAR - 334394, 335805 - PTO 540/1000 RPM, W/ GROUND SPEED, SHAFT & GEAR (31) - IMPLEMENT POWER TAKE OFF

1

87304430

SHAFT

1шт.

2

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

3шт.

3

5103238

NEEDLE BEARING,15mm ID x 21mm OD x 16mm W

1шт.

4

11068376

SNAP RING,M35, Ext x 1.5 Thk

2шт.

5

5167983

SPLINED COUPLING,12T

1шт.

6

11062476

SNAP RING,M90, Int

2шт.

7

84211469

COVER

ASSY, Incl 8, 9

1шт.

8

84211461

COVER

1шт.

9

10839710

DOWEL,M10 x 15.00mm

2шт.

10

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.

11

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

1шт.

12

5122797

THRUST WASHER,35mm ID x 62mm OD x 6mm Thk

1шт.

13

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

2шт.

14

5109733

DRIVEN GEAR

1шт.

15

87311694

SLEEVE

ASSY, Incl 16, 17

1шт.

16

5129512

SLEEVE,24T, 14T

1шт.

17

5129513

SYNCHRONIZER,24T

1шт.

18

5109736

DRIVEN GEAR

1шт.

19

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

20

5119203

SEAL,55mm ID x 80mm OD x 10mm Thk

1шт.

21

5117501

SHAFT,181mm L, 14T

ASSY, Incl 22, 23

1шт.

22

NSS

NOT SOLD SEPARAT

Shaft, Incl in 21

1шт.

23

44012300

PIN,14mm OD x 37mm L

3шт.

24

5185601

SHAFT,1000 rpm, 21 Teeth

PTO 1000 RPM

1шт.

24

5185602

SHAFT,540 rpm, 6 Teeth

PTO 540 RPM

1шт.

25

16105021

LOCK NUT,M12 x 1.25, Cl 10

3шт.
