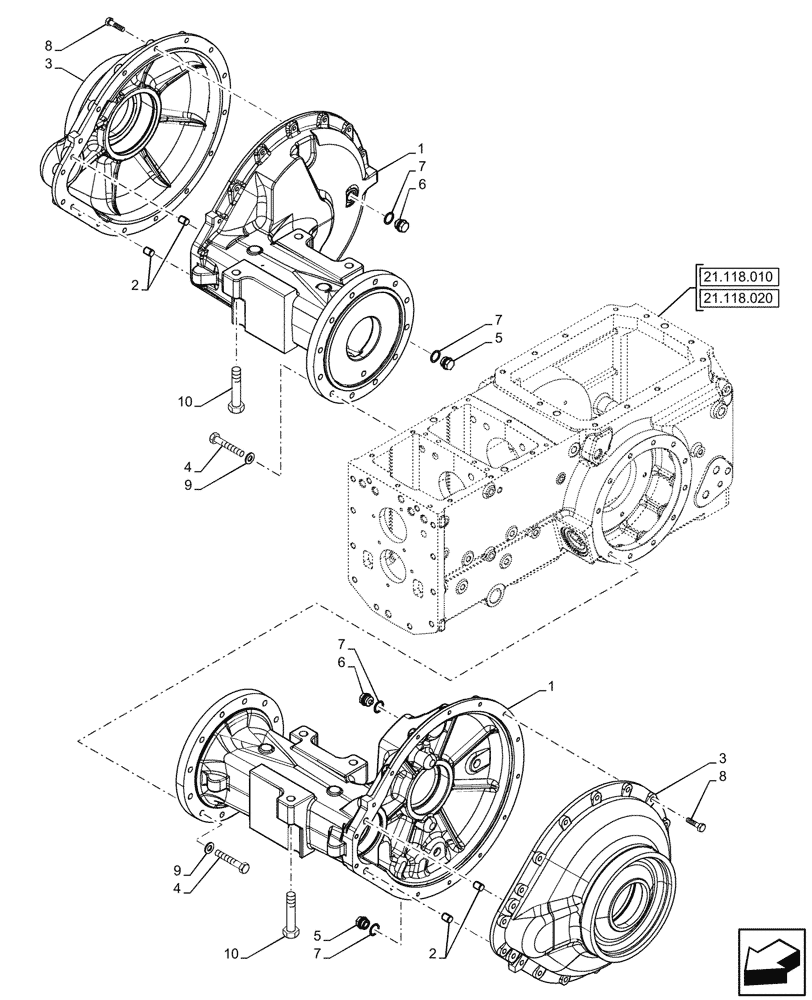

Запчасти Case IH JX95HC PLUS (27.120.040) - STD + VAR - 335054, 335103, 335413, 335417, 335113, 390110 - FINAL DRIVE, HOUSING & COVERS (27) - REAR AXLE SYSTEM

1

5094117

HOUSING

2шт.

2

10839910

DOWEL,15mm OD x 20mm L

4шт.

3

5089364

COVER

2шт.

4

15540831

BOLT,Hex, M12 x 1.25 x 50mm, Cl 10.9

15шт.

5

10305111

PLUG,M22 x 1.5 x 21, Cl5.8

2шт.

6

84209347

PLUG

2шт.

7

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

4шт.

8

11307021

BOLT,Hex, M10 x 1.25 x 40, 10.9, Full Thd

30шт.

9

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

21шт.

10

15541031

BOLT,Hex, M12 x 1.25 x 60mm, Cl 10.9

5шт.
