(27.120.010) - STD + VAR - 335113, 390110 - FINAL DRIVE, SHAFT

Запчасти Case IH JX95HC PLUS (27.120.010) - STD + VAR - 335113, 390110 - FINAL DRIVE, SHAFT (27) - REAR AXLE SYSTEM

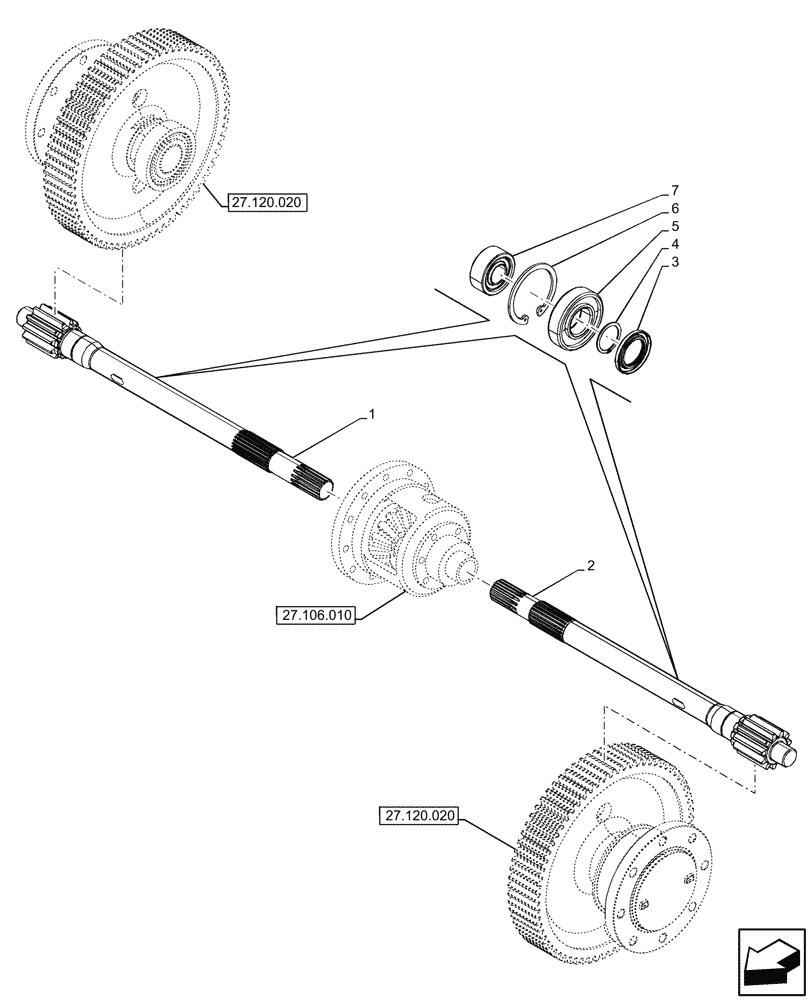

Схема запчастей Case IH JX95HC PLUS - (27.120.010) - STD + VAR - 335113, 390110 - FINAL DRIVE, SHAFT (27) - REAR AXLE SYSTEM
3
27.120.020
5
27.120.020
6
1
4
7
2
27.106.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5089365

HALF SHAFT

RH

1шт.

2

5089366

HALF SHAFT

LH

1шт.

3

5119215

SEAL,50mm ID x 80mm OD x 8mm Thk

4шт.

4

11069376

SNAP RING,M50, Ext

2шт.

5

20229990

BALL BEARING,50mm ID x 110mm OD x 27mm W

2шт.

6

11077476

SNAP RING,M150, Internal

2шт.

7

5140199

BEARING, ROLLER, CYL,35mm ID x 80mm OD x 31mm W

1шт.
