(27.106.020) - STD + VAR - 335113, 390110 - DIFFERENTIAL GEAR, SUPPORT

Запчасти Case IH JX95HC PLUS (27.106.020) - STD + VAR - 335113, 390110 - DIFFERENTIAL GEAR, SUPPORT (27) - REAR AXLE SYSTEM

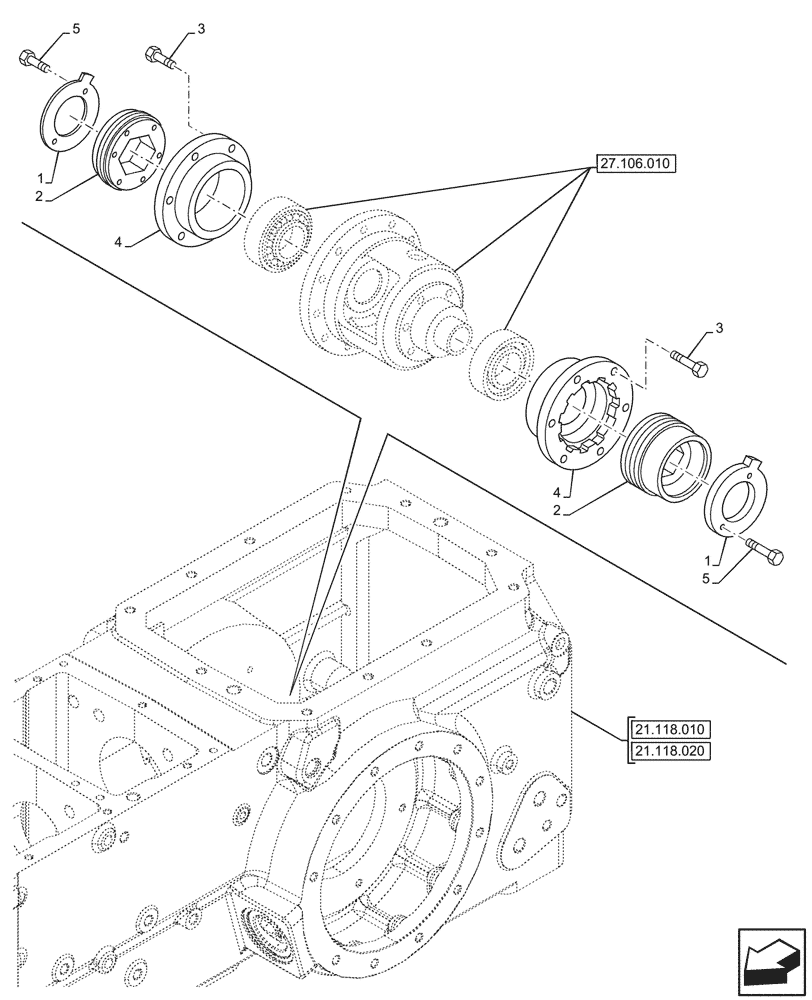

Схема запчастей Case IH JX95HC PLUS - (27.106.020) - STD + VAR - 335113, 390110 - DIFFERENTIAL GEAR, SUPPORT (27) - REAR AXLE SYSTEM
21.118.020
5
5
3
4
2
2
21.118.010
3
4
1
1
27.106.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5087672

LOCK WASHER,50mm ID x 93mm OD x 4mm Thk

2шт.

2

5087671

LOCK NUT

2шт.

3

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

12шт.

4

5127162

SUPPORT

2шт.

5

14238021

LOCK BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 5
