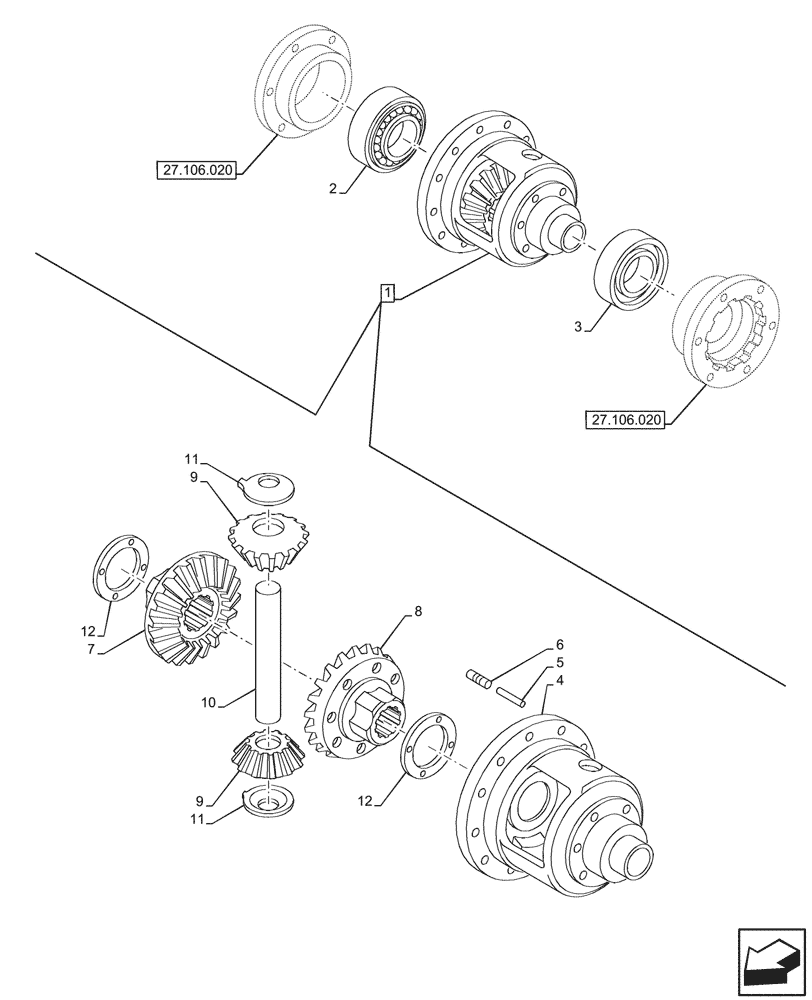

Запчасти Case IH JX95HC PLUS (27.106.010) - STD + VAR - 335113, 390110 - DIFFERENTIAL GEAR (27) - REAR AXLE SYSTEM

1

84345898

DIFFERENTIAL

ASSY, Incl 4 - 12

1шт.

2

24903460

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

1шт.

3

26799990

TAPERED BEARING,55mm ID x 100mm OD x 22.75mm W

1шт.

4

5090264

CASE

1шт.

5

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.

6

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

7

4997230

PLANETARY GEAR,19T

1шт.

8

5149551

PLANETARY GEAR,19T

1шт.

9

84343773

GEAR

2шт.

10

84474220

PIN

1шт.

11

5089372

THRUST WASHER

2шт.

12

5085514

THRUST WASHER,51mm ID x 70mm OD x Smm Thk

Kit, ASSY, Incl 12

1шт.

12

4997235

THRUST WASHER,51mm ID x 70mm OD x 1.5mm Thk

1.5mm Thk

1шт.

12

4997236

THRUST WASHER,51mm ID x 70mm OD x 1.6mm Thk

1.6mm Thk

1шт.

12

5138267

THRUST WASHER,51mm ID x 70mm OD x 1.7mm Thk

1.7mm Thk

1шт.

12

5144801

THRUST WASHER,51mm ID x 70mm OD x 1.4mm Thk

1.4mm Thk

1шт.

12

5144802

THRUST WASHER,51mm ID x 70mm OD x 1.8mm Thk

1.8mm Thk

1шт.

12

5170588

THRUST WASHER,51mm ID x 70mm OD x 1.9mm Thk

1.9mm Thk

1шт.

12

5170589

THRUST WASHER,51mm ID x 70mm OD x 2mm Thk

2mm Thk

1шт.

12

5182769

THRUST WASHER,51mm ID x 70mm OD x 2.1mm Thk

2.1mm Thk

1шт.

12

5182770

THRUST WASHER,51mm ID x 70mm OD x 2.2mm Thk

2.2mm Thk

1шт.
