(25.108.040) - STD + VAR - 391244 - 4WD FRONT AXLE, PLANETARY CARRIER SHAFT, RH

Запчасти Case IH JX95HC PLUS (25.108.040) - STD + VAR - 391244 - 4WD FRONT AXLE, PLANETARY CARRIER SHAFT, RH (25) - FRONT AXLE SYSTEM

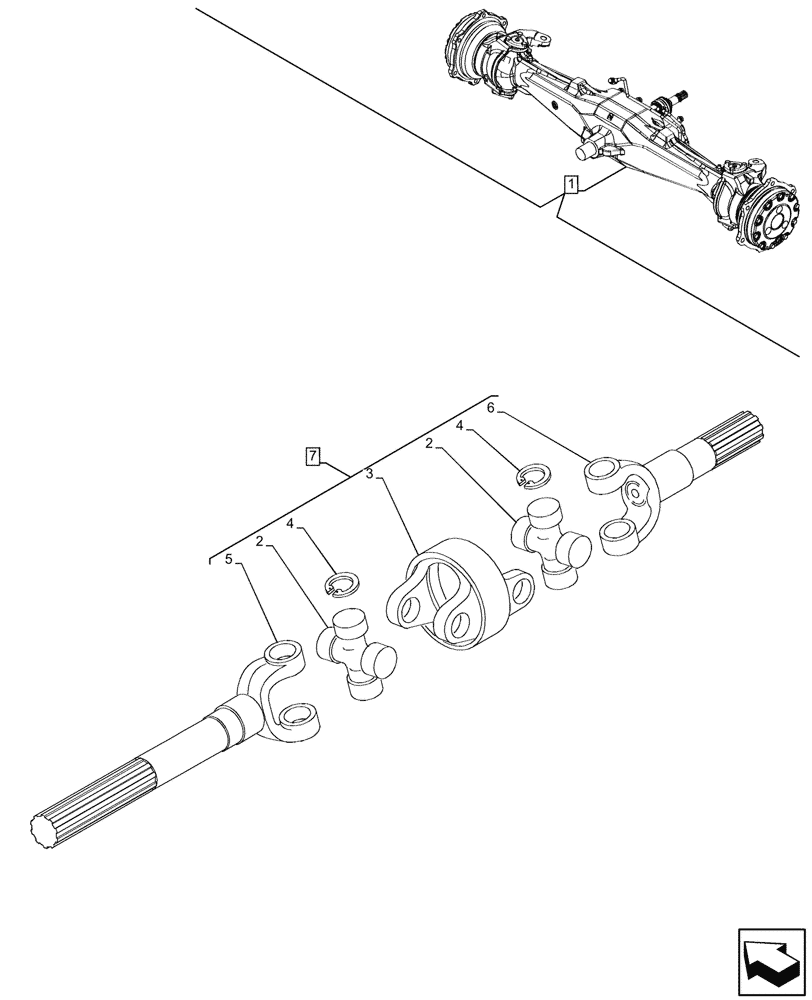

Схема запчастей Case IH JX95HC PLUS - (25.108.040) - STD + VAR - 391244 - 4WD FRONT AXLE, PLANETARY CARRIER SHAFT, RH (25) - FRONT AXLE SYSTEM
6
7
2
4
1
2
3
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87307627

FRONT AXLE

4WD, ASSY, Incl 2 - 7

1шт.

2

5191547

U-JOINT SPIDER

2шт.

3

87361042

YOKE

1шт.

4

5191548

CIRCLIP

8шт.

5

5191552

HALF SHAFT

Yoke

1шт.

6

5191549

SHAFT

Yoke

1шт.

7

5189210

AXLE-SHAFT, ARTICULA

Wheel, RH, ASSY, Incl 2 - 6

1шт.

Выбрано товаров: 7
