(25.102.030) - STD + VAR - 391244 - 4WD FRONT AXLE, DIFFERENTIAL GEAR

Запчасти Case IH JX95HC PLUS (25.102.030) - STD + VAR - 391244 - 4WD FRONT AXLE, DIFFERENTIAL GEAR (25) - FRONT AXLE SYSTEM

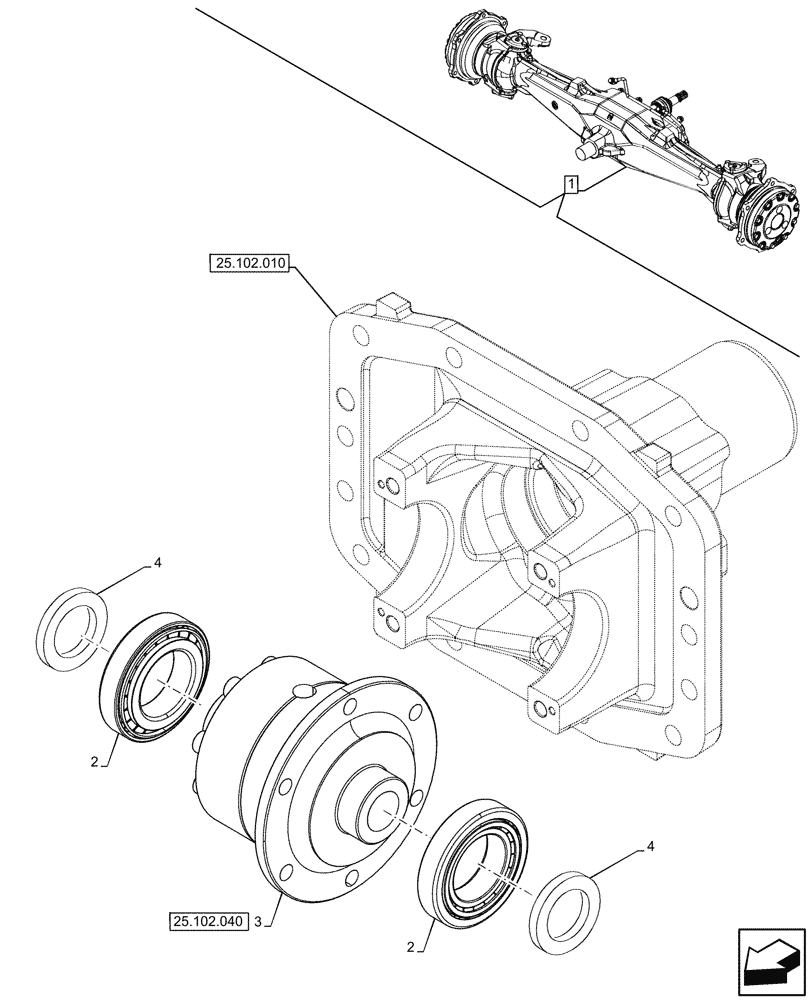

Схема запчастей Case IH JX95HC PLUS - (25.102.030) - STD + VAR - 391244 - 4WD FRONT AXLE, DIFFERENTIAL GEAR (25) - FRONT AXLE SYSTEM
2
25.102.040
1
25.102.010
4
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87307627

FRONT AXLE

4WD, ASSY, Incl 2 - 4

1шт.

2

24903450

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

Roller

2шт.

3

5162583

DIFFERENTIAL GEAR

ASSY

1шт.

4

5133799

SEAL,42mm ID x 62mm OD x 17mm Thk

2шт.
