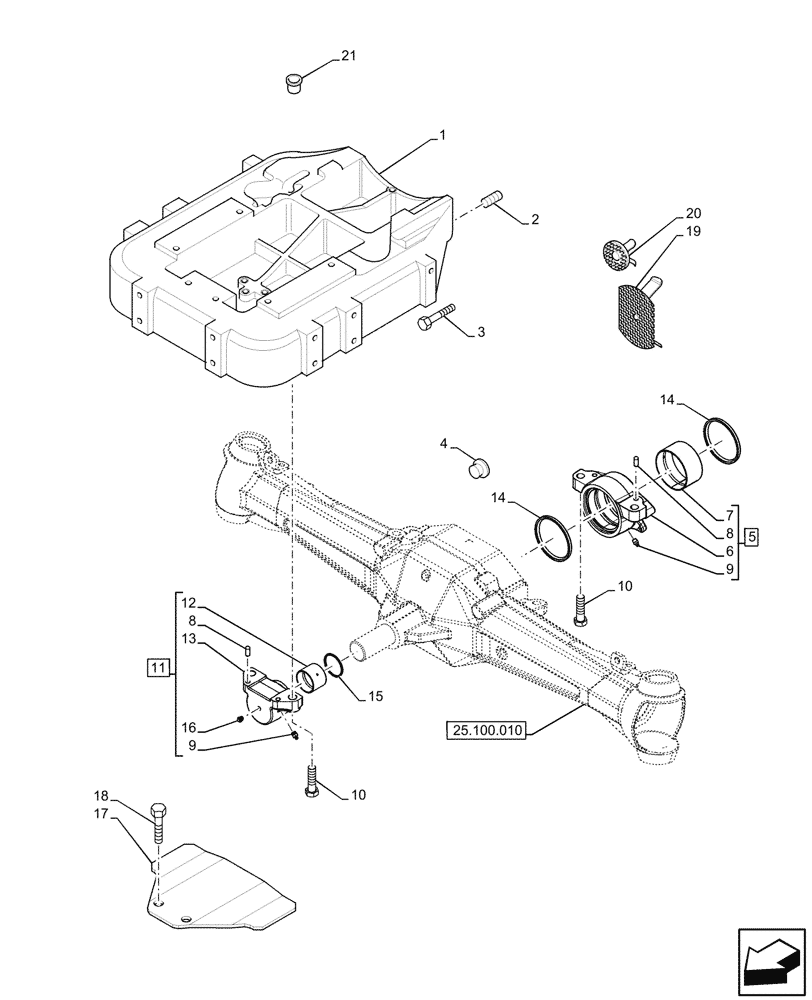

Запчасти Case IH JX95HC PLUS (25.100.030) - STD + VAR - 390215 - FRONT AXLE SUPPORT (25) - FRONT AXLE SYSTEM

1

5097743

AXLE SUPPORT

4WD

1шт.

2

4668595

DOWEL,18mm OD x 22mm L

Pin

2шт.

3

5125208

BOLT,Hex, M18 x 1.5 x 75mm

4шт.

4

590353

PLUG,15mm OD x 10mm High, Plastic

16шт.

5

5140454

SUPPORT

Axle, Hinge, ASSY, Incl 6, 7, 8 (Qty 2), 9 (Qty 1)

1шт.

6

5140453

SUPPORT

1шт.

7

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

1шт.

8

10837710

DOWEL,M10 x 25

4шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

14272034

LOCK BOLT,Hex, M18 x 1.5 x 65mm, Cl 10.9

4шт.

11

5140452

SUPPORT

Front Axle, Hinge, 4WD, ASSY, Incl 8 (Qty 2), 9 (Qty 1), 12, 13, 16

1шт.

12

5101112

BUSHING,52.72mm ID x 57.16mm OD x 42mm L

1шт.

13

5140451

SUPPORT

1шт.

14

5140455

SEALING RING,99mm ID x 115mm OD x 7,5mm Thk

2шт.

15

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

16

13411117

VALVE PRESSURE RELIE,M10, Black

1шт.

17

5095623

PLATE

Articulation Limiter

1шт.

18

15540321

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

19

84271368

GUARD

2шт.

20

84271383

GUARD

2шт.

21

87573793

CUP PLUG,7mm OD, 7mm High, 0.80mm Thk

4шт.
