(25.100.010) - STD + VAR - 391244 - 4WD FRONT AXLE

Запчасти Case IH JX95HC PLUS (25.100.010) - STD + VAR - 391244 - 4WD FRONT AXLE (25) - FRONT AXLE SYSTEM

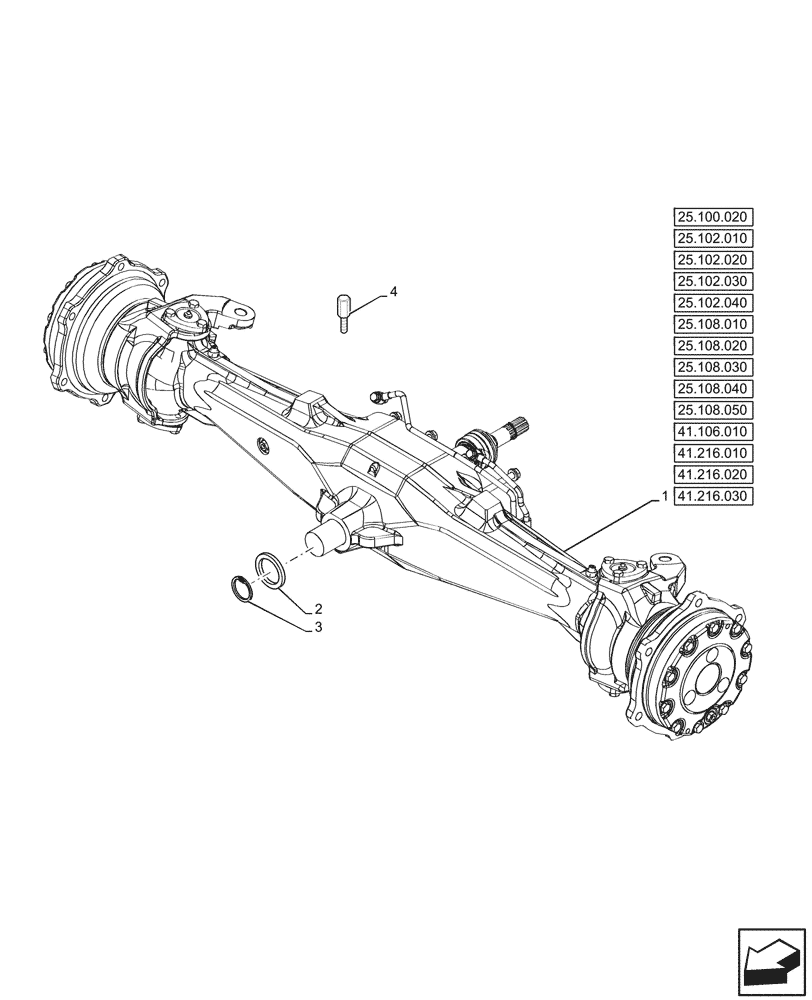

Схема запчастей Case IH JX95HC PLUS - (25.100.010) - STD + VAR - 391244 - 4WD FRONT AXLE (25) - FRONT AXLE SYSTEM
25.102.010
41.216.030
25.108.030
3
4
41.216.010
25.102.030
25.108.040
25.108.050
41.216.020
25.102.020
41.106.010
1
25.102.040
25.108.010
2
25.100.020
25.108.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87307627

FRONT AXLE

4WD, ASSY

1шт.

2

5140456

RING,52.8mm ID x 80mm OD x 5mm Thk

1шт.

3

11067776

SNAP RING,M29, Ext

1шт.

4

5095283

ADJUSTMENT SCREW,M10 x 1.25 x 30mm, FE

2шт.
