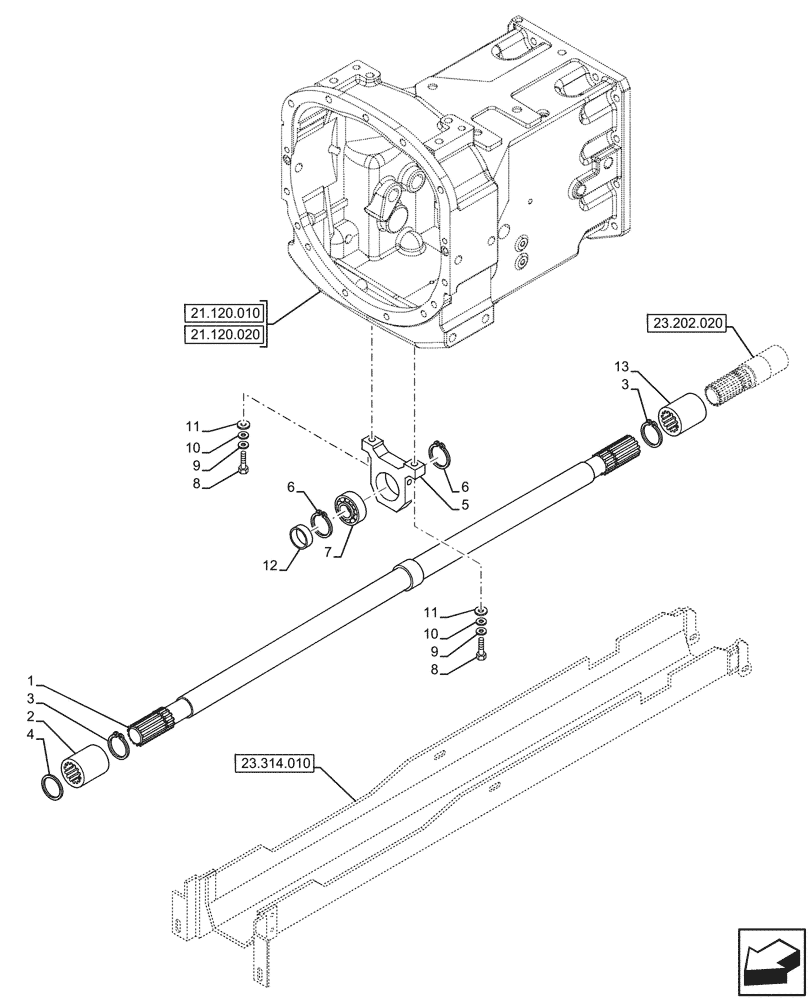

Запчасти Case IH JX95HC PLUS (23.314.020) - STD + VAR - 335113, 390110 - TRANSMISSION, DRIVE SHAFT, 4WD (23) - FOUR WHEEL DRIVE SYSTEM

1

5150377

PROPELLER SHAFT

1шт.

2

5094593

SLEEVE

1шт.

3

11067876

SNAP RING,M30, Ext

4шт.

4

5143591

SHIM,31.7mm ID x 42mm OD x 3mm Thk

1шт.

4

5143592

WASHER,31.70mm ID x 42.00mm OD x 3.30mm T

1шт.

4

5143593

WASHER,31.7mm ID x 42mm OD x 3.7mm Thk

1шт.

4

5143594

WASHER,31.7mm ID x 42mm OD x 4mm Thk

1шт.

4

5143595

WASHER,31.7mm ID x 42mm OD x 4.3mm Thk

1шт.

4

5143583

SHIM,31.7mm ID x 42mm OD x 1mm Thk

1шт.

4

5143584

SHIM,31.7mm ID x 42mm OD x 1.2mm Thk

1шт.

4

5143585

SHIM,31.7mm ID x 42mm OD x 1.5mm Thk

1шт.

4

5143586

SHIM,32mm ID x 42mm OD x 1.8mm Thk

1шт.

4

5143587

SHIM,31.7mm ID x 42mm OD x 2mm Thk

1шт.

4

5143588

SHIM,31.7mm ID x 42mm OD x 2.2mm Thk

1шт.

4

5143589

SHIM,31.7mm ID x 42mm OD x 2.5mm Thk

1шт.

4

5143590

SHIM,31.7mm ID x 42mm OD x 2.8mm Thk

1шт.

5

5156553

SUPPORT

1шт.

6

11061576

SNAP RING,M72, Int

2шт.

7

84179930

BALL BEARING

1шт.

8

15540634

BOLT,Hex, M12 x 1.25 x 40mm, Cl 10.9, Full Thd

2шт.

9

12601574

WAVE WASHER,Wave, M13

2шт.

10

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

11

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

2шт.

12

5150378

SPACER

1шт.

13

5150124

SLEEVE,14T

1шт.
