(23.314.010) - STD + VAR - 335113, 390110 - TRANSMISSION, DRIVE SHAFT, GUARD, 4WD

Запчасти Case IH JX95HC PLUS (23.314.010) - STD + VAR - 335113, 390110 - TRANSMISSION, DRIVE SHAFT, GUARD, 4WD (23) - FOUR WHEEL DRIVE SYSTEM

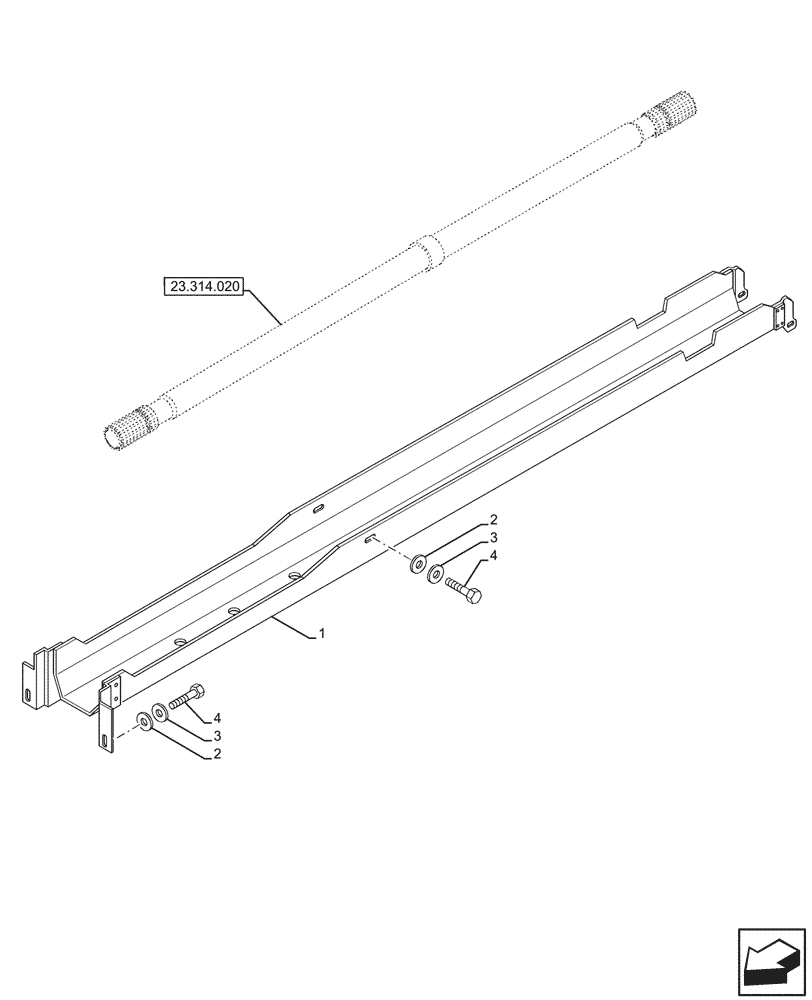

Схема запчастей Case IH JX95HC PLUS - (23.314.010) - STD + VAR - 335113, 390110 - TRANSMISSION, DRIVE SHAFT, GUARD, 4WD (23) - FOUR WHEEL DRIVE SYSTEM
2
2
3
3
4
1
4
23.314.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87626246

GUARD

1шт.

2

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

6шт.

3

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

6шт.

4

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

6шт.

Выбрано товаров: 4
