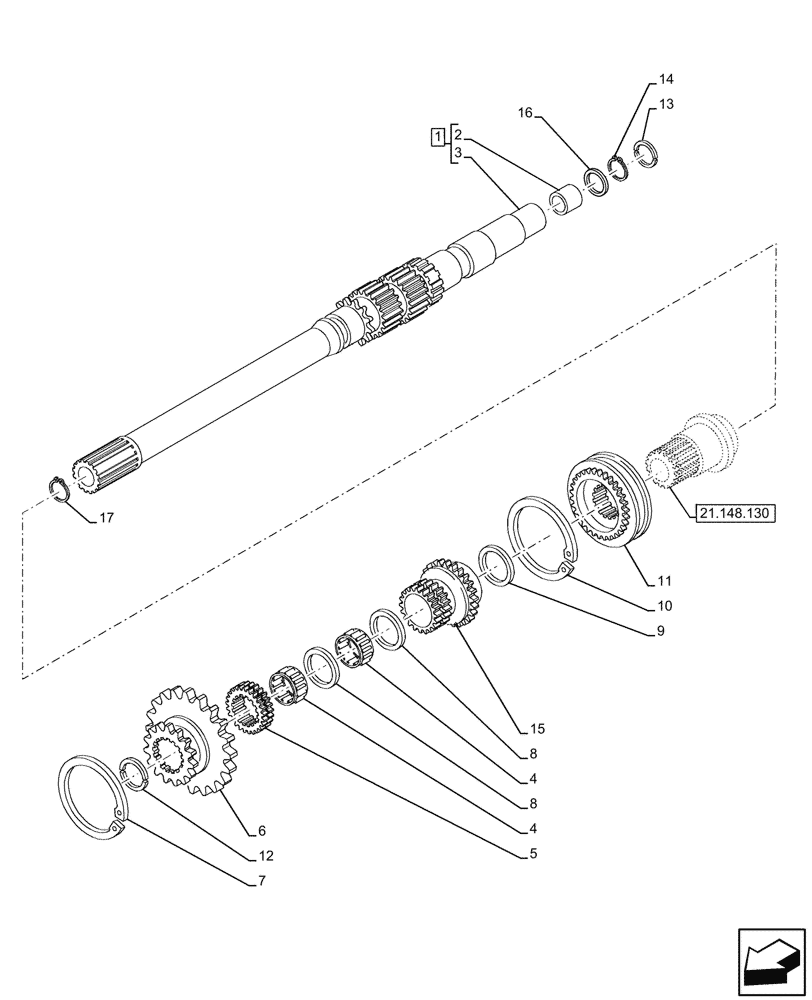

Запчасти Case IH JX95HC PLUS (21.148.150) - VAR - 335113 - TRANSMISSION, DRIVEN SHAFT, GEAR, 20+12 SYNCHRO+CREEPER (21) - TRANSMISSION

1

5097576

SHAFT

ASSY, Incl 2, 3

1шт.

2

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

1шт.

3

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

4

5160928

NEEDLE BEARING

2шт.

5

5175960

GEAR,16T Internal / 23T External

1шт.

6

5175967

GEAR

1шт.

7

11070876

CIRCLIP,M80, Ext

1шт.

8

5160929

SNAP RING,55.3mm OD x 1.5mm Width

3шт.

9

5182075

WASHER,42.13mm ID x 56mm OD x 4mm Thk

1шт.

10

11070076

SNAP RING,M65, Ext

1шт.

11

5186638

SYNCHRONIZER

1шт.

12

5141500

RING,28.2mm ID x 34.5mm OD x 1mm Thk

1шт.

13

5175959

HALF-RING

1шт.

14

11069376

SNAP RING,M50, Ext

1шт.

15

5175962

SPLINED COUPLING

1шт.

16

84226406

OIL SEAL,25mm ID x 31mm OD x 7mm Thk

1шт.

17

5135061

CIRCLIP,M45, Ext

1шт.
