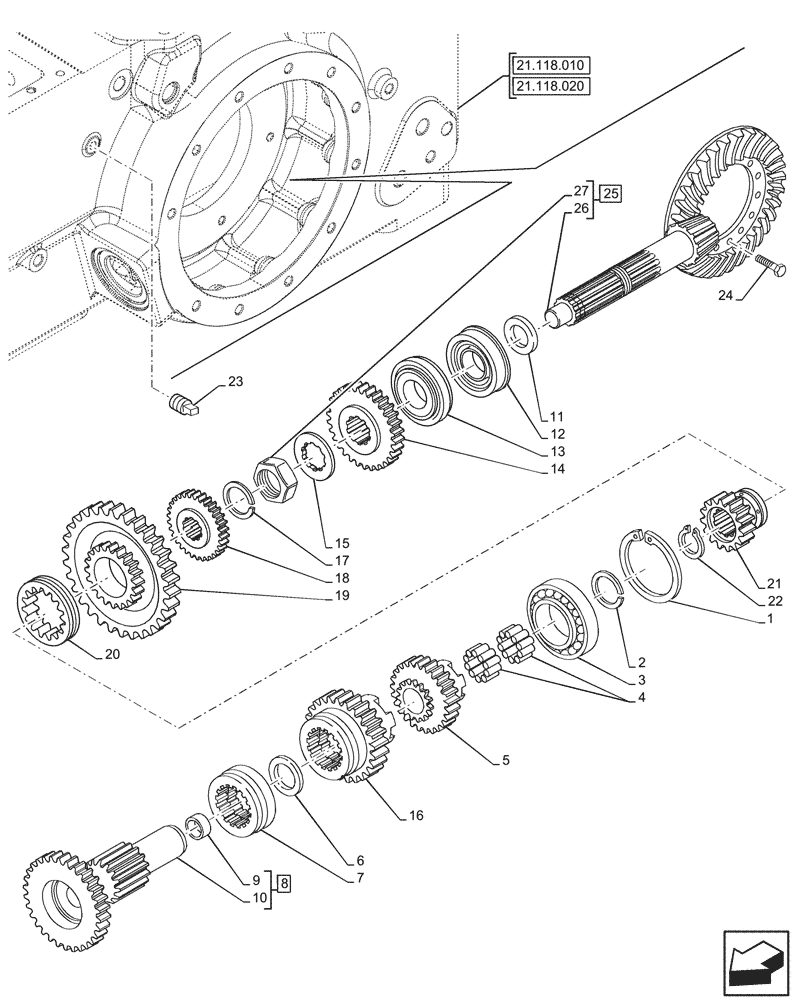

Запчасти Case IH JX95HC PLUS (21.148.120) - STD + VAR - 335113, 390110 - CENTRAL REDUCTION GEAR, SHAFT & GEAR (21) - TRANSMISSION

1

5117076

CIRCLIP,M47, Ext

1шт.

2

11075476

SNAP RING,M110, Int

1шт.

3

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

1шт.

4

5109747

NEEDLE BEARING,42mm ID x 47mm OD x 27mm W

2шт.

5

5131169

GEAR

1шт.

6

5109683

THRUST WASHER,42.05mm ID x 56mm OD x 4mm Thk

1шт.

7

5125880

SPLINED COUPLING,17T

1шт.

8

5176751

MAIN SHAFT

1шт.

9

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

1шт.

10

5176750

SHAFT

1шт.

11

5111859

SHIM,100.1mm ID x 110mm OD x 1.9mm Thk

1шт.

11

5111868

SHIM,100.1mm ID x 110mm OD x 2.35mm Thk

1шт.

11

5111869

SHIM,100.1mm ID x 110mm OD x 2.4mm Thk

1шт.

11

5111870

SHIM,100.1mm ID x 110mm OD x 2.45mm Thk

1шт.

11

5111871

SHIM,100.1mm ID x 110mm OD x 2.5mm Thk

1шт.

11

5125098

SHIM,100.1mm ID x 110mm OD x 1.85mm Thk

1шт.

11

5125099

SHIM,100.1mm ID x 110mm OD x 2.55mm Thk

1шт.

11

5125100

SHIM,100.1mm ID x 110mm OD x 2.6mm Thk

1шт.

11

5125101

SHIM,100.1mm ID x 110mm OD x 2.65mm Thk

1шт.

11

5125102

SHIM,100.1mm ID x 110mm OD x 2.7mm Thk

1шт.

11

5111860

SHIM,100.1mm ID x 110mm OD x 1.95mm Thk

1шт.

11

5111861

SHIM,100.1mm ID x 110mm OD x 2mm Thk

1шт.

11

5111862

SHIM,100.1mm ID x 110mm OD x 2.05mm Thk

1шт.

11

5111863

SHIM,100.1mm ID x 110mm OD x 2.1mm Thk

1шт.

11

5111864

SHIM,100.1mm ID x 110mm OD x 2.15mm Thk

1шт.

11

5111865

SHIM,100.1mm ID x 110mm OD x 2.2mm Thk

1шт.

11

5111866

SHIM,100.1mm ID x 110mm OD x 2.25mm Thk

1шт.

11

5111867

SHIM,100.1mm ID x 110mm OD x 2.3mm Thk

1шт.

12

84204666

BEARING ASSY

1шт.

13

84204693

ROLLER BEARING

1шт.

14

5131674

DRIVEN GEAR

1шт.

15

5119261

LOCK WASHER,38mm ID x 70mm OD x 1.5mm Thk

1шт.

16

47033202

GEAR

1шт.

17

5127762

HALF-RING

2шт.

18

47033197

GEAR

1шт.

19

5131680

DRIVEN GEAR

1шт.

20

5125010

SLEEVE,23T

1шт.

21

5125009

SPLINED COUPLING,10T Internal / 23T External

1шт.

22

11068976

SNAP RING,M42, Ext

1шт.

23

14323914

PLUG,M10 x 1.25 x 14mm L

1шт.

24

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

12шт.

25

5094887

BEVEL GEAR

ASSY, Incl 26, 27

1шт.

26

5094864

1шт.

27

5117744

NUT

1шт.
