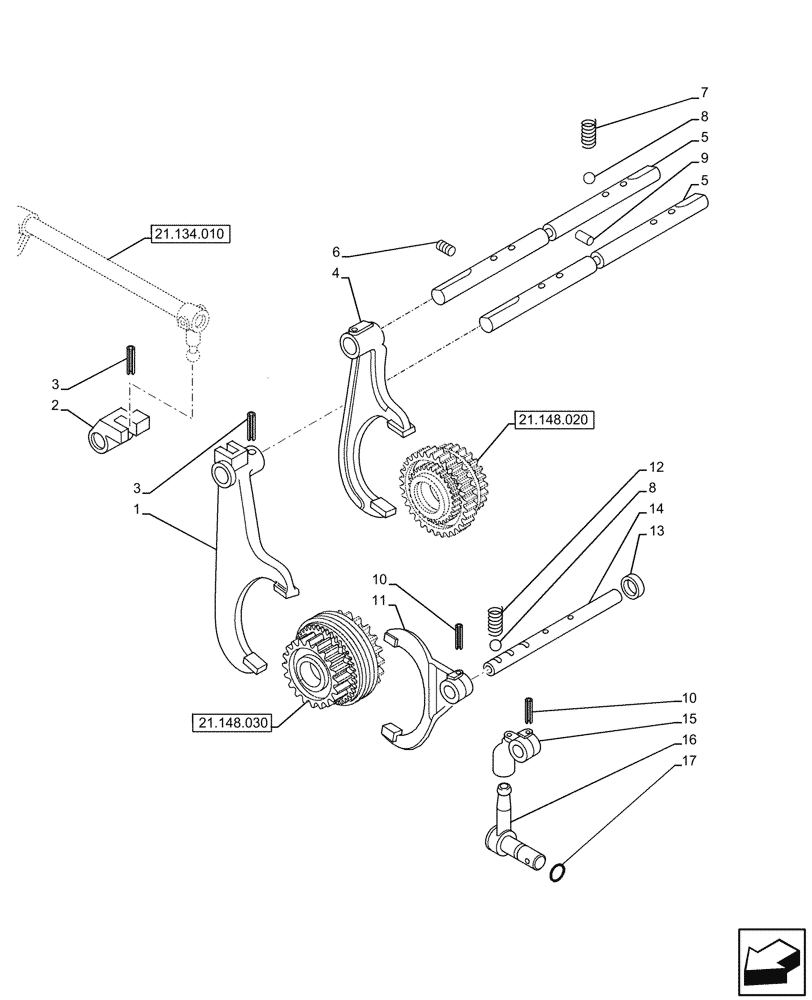

Запчасти Case IH JX95HC PLUS (21.148.090) - STD + VAR - 390110 - TRANSMISSION, ROD & FORKS, 12+12 , SYNCHROSHUTTLE (21) - TRANSMISSION

1

5174202

SHIFTER FORK

3rd - 4th Gear Selector Fork

1шт.

2

5174201

DOG

1шт.

3

13907770

ROLL PIN,M5 x 32, Coiled

3шт.

4

5127387

SHIFTER FORK

1st - 2nd Gear Selector Fork

1шт.

5

84291900

SHIFT RAIL

2шт.

6

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

1шт.

7

4994342

SPRING,8mm OD x 30mm OAL

2шт.

8

20063390

BALL,8.73mm OD

3шт.

9

5110264

PAWL,8.5mm OD x 26.5mm L

1шт.

10

13907670

ROLL PIN,M5 x 30, Coiled

2шт.

11

5143463

SHIFTER FORK

1шт.

12

4956546

SPRING,Cylindrical, 8.1mm OD x 38mm L

1шт.

13

87303907

BUSHING,16.2mm ID x 19.5mm OD x 15.5mm L

1шт.

14

5161826

SHIFT RAIL

1шт.

15

47910959

HUB

1шт.

16

44909485

LEVER,20mm OD x 69mm L

1шт.

17

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.
