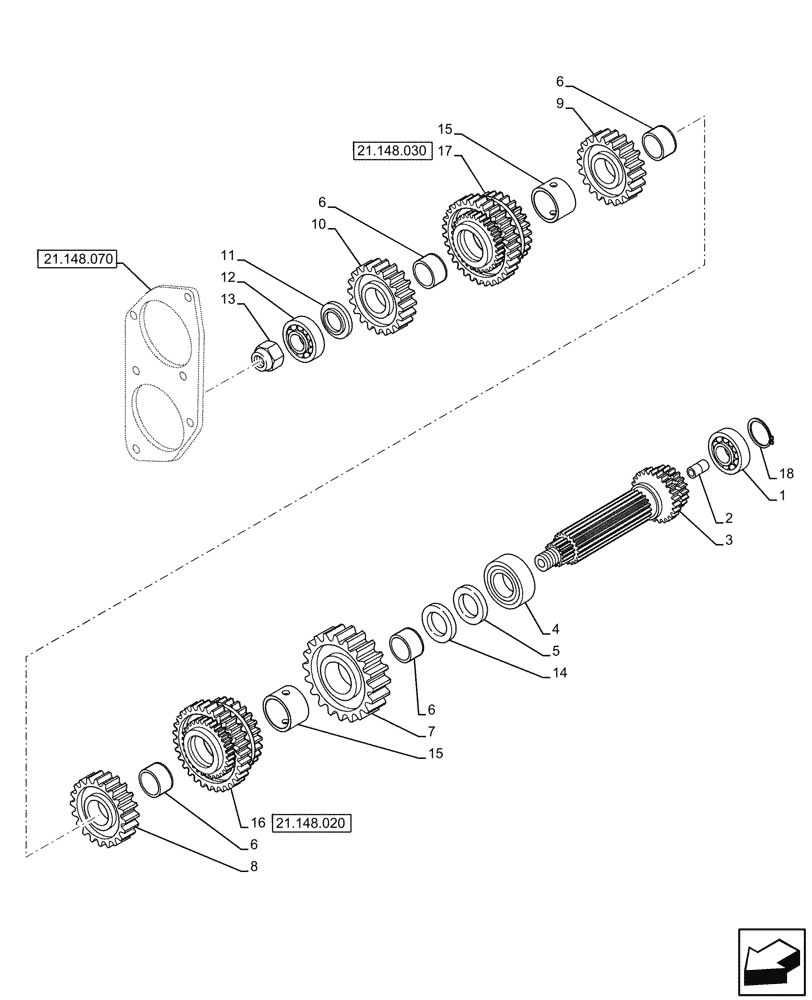

Запчасти Case IH JX95HC PLUS (21.148.080) - VAR - 335113 - TRANSMISSION, SHAFT & GEAR, 20+12 SYNCHRO+CREEPER (21) - TRANSMISSION

1

5126458

BEARING, ROLLER, CYL,27.5mm ID x 52mm OD x 21mm W

1шт.

2

5145131

RIGID TUBE

1шт.

3

5160028

SHAFT

1шт.

4

84204873

ROLLER BEARING

2шт.

5

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

6

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

4шт.

7

5118912

DRIVING GEAR

1st Speed

1шт.

8

5169606

DRIVING GEAR

2nd Speed

1шт.

9

5179672

DRIVING GEAR

3rd Speed

1шт.

10

5123982

DRIVING GEAR

4st Speed

1шт.

11

5122797

THRUST WASHER,35mm ID x 62mm OD x 6mm Thk

1шт.

12

28995880

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

13

5137678

RING NUT

1шт.

14

5109669

WASHER,40.05mm ID x 55mm OD x 3mm Thk

1шт.

14

5118937

WASHER,40.05mm ID x 55mm OD x 3.25mm Thk

1шт.

14

5118938

WASHER,40.05mm ID x 55mm OD x 3.5mm Thk

1шт.

14

5118939

WASHER,40.05mm ID x 55mm OD x 3.75mm Thk

1шт.

14

5118940

THRUST WASHER,40.05mm ID x 55mm OD x 4mm Thk

1шт.

15

5111983

SPACER,44.55mm ID x 55mm OD x 35mm L

2шт.

16

84222590

SYNCHRONIZER

1st - 2nd Speed, ASSY

1шт.

17

84222592

SYNCHRONIZER

3rd - 4th Speed, ASSY

1шт.

18

11062476

SNAP RING,M90, Int

1шт.
