(21.148.050) - STD + VAR - 390110 - TRANSMISSION, CLUTCH INPUT SHAFT, 12+12, SYNCHROSHUTTLE

Запчасти Case IH JX95HC PLUS (21.148.050) - STD + VAR - 390110 - TRANSMISSION, CLUTCH INPUT SHAFT, 12+12, SYNCHROSHUTTLE (21) - TRANSMISSION

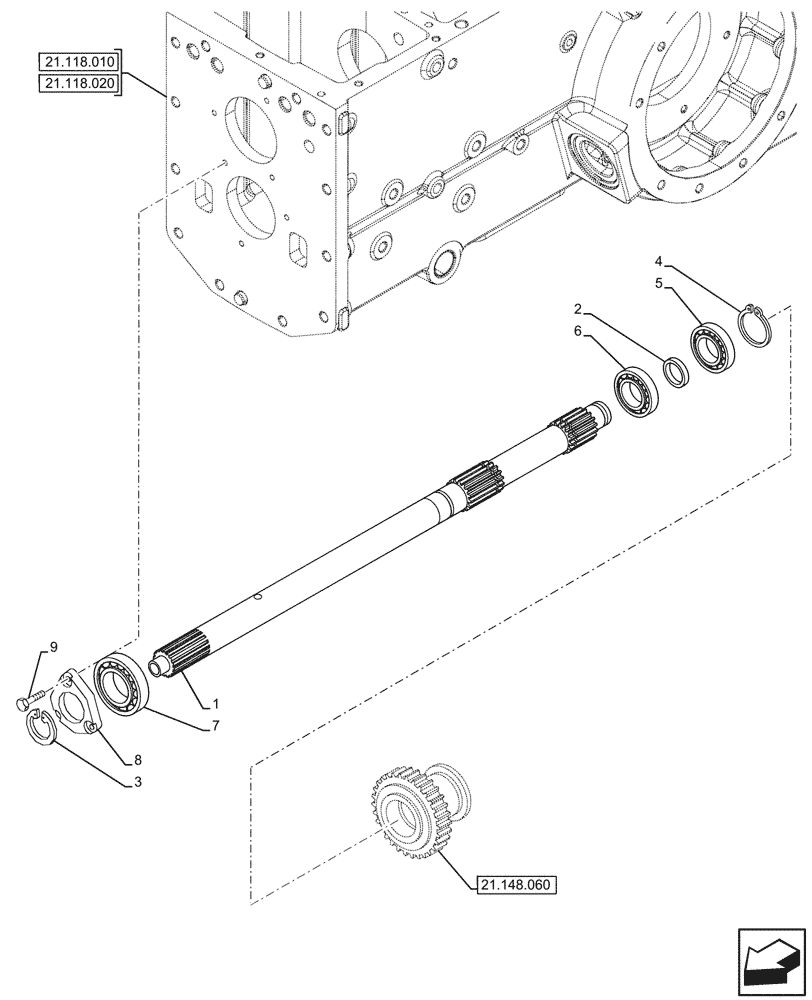

Схема запчастей Case IH JX95HC PLUS - (21.148.050) - STD + VAR - 390110 - TRANSMISSION, CLUTCH INPUT SHAFT, 12+12, SYNCHROSHUTTLE (21) - TRANSMISSION
21.118.010
7
5
21.148.060
8
4
9
21.118.020
6
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5089358

CLUTCH INPUT SHAFT

1шт.

2

84226406

OIL SEAL,25mm ID x 31mm OD x 7mm Thk

1шт.

3

5135061

CIRCLIP,M45, Ext

1шт.

4

11068876

SNAP RING,M40, Ext

1шт.

5

84207575

ROLLER BEARING

1шт.

6

87302536

BALL BEARING,45mm ID x 85mm OD x 19mm W

1шт.

7

28996330

BALL BEARING,45mm ID x 85mm OD x 19mm W

1шт.

8

5162671

COVER

1шт.

9

14238121

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

Выбрано товаров: 9
