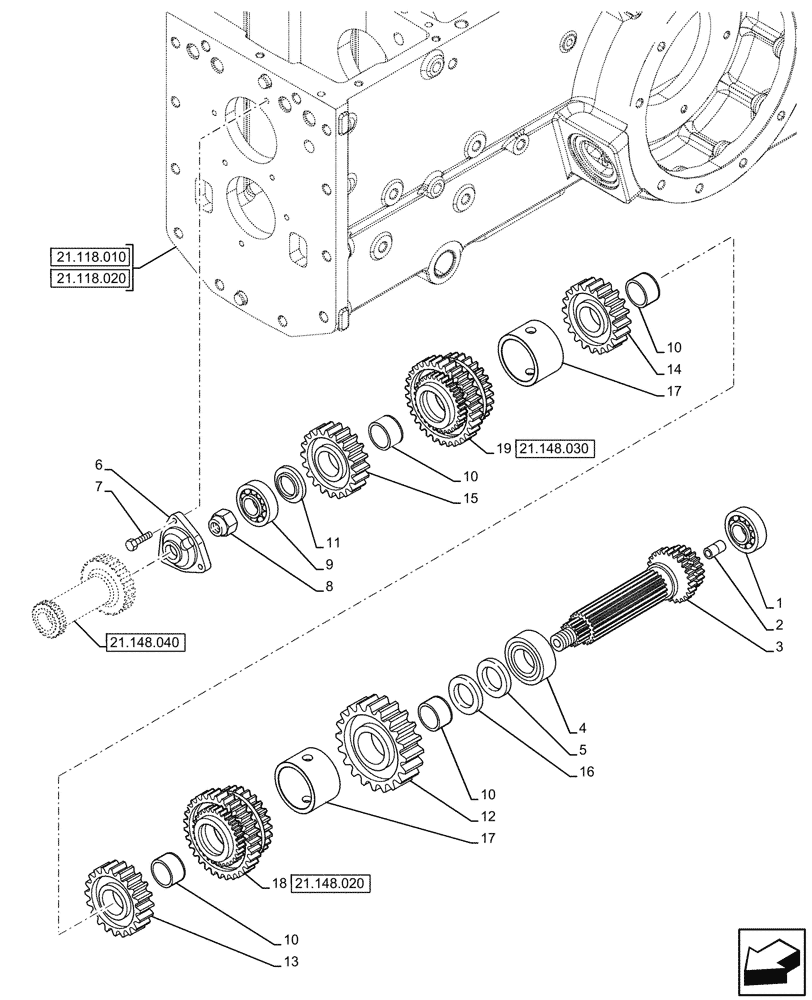

Запчасти Case IH JX95HC PLUS (21.148.010) - STD + VAR - 390110 - TRANSMISSION, DRIVEN SHAFT, SYNCHRONIZER, GEAR, 12+12, SYNCHROSHUTTLE (21) - TRANSMISSION

1

5126458

BEARING, ROLLER, CYL,27.5mm ID x 52mm OD x 21mm W

1шт.

2

5145131

RIGID TUBE

1шт.

3

5131167

DRIVEN SHAFT

1шт.

4

84204873

ROLLER BEARING

2шт.

5

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

6

5117552

COVER

1шт.

7

14302821

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

8

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.

9

28995880

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

10

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

4шт.

11

5122797

THRUST WASHER,35mm ID x 62mm OD x 6mm Thk

1шт.

12

5118912

DRIVING GEAR

1шт.

13

5169606

DRIVING GEAR

1шт.

14

5179672

DRIVING GEAR

1шт.

15

5123982

DRIVING GEAR

1шт.

16

5109669

WASHER,40.05mm ID x 55mm OD x 3mm Thk

1шт.

16

5118937

WASHER,40.05mm ID x 55mm OD x 3.25mm Thk

1шт.

16

5118938

WASHER,40.05mm ID x 55mm OD x 3.5mm Thk

1шт.

16

5118939

WASHER,40.05mm ID x 55mm OD x 3.75mm Thk

1шт.

16

5118940

THRUST WASHER,40.05mm ID x 55mm OD x 4mm Thk

1шт.

17

5111983

SPACER,44.55mm ID x 55mm OD x 35mm L

2шт.

18

84222590

SYNCHRONIZER

1st - 2nd Speed, ASSY

1шт.

19

84222592

SYNCHRONIZER

3rd - 4th Speed, ASSY

1шт.
