Запчасти Case IH JX95 (0.30.0/05) - (VAR.319-747) TTF ENGINE TIER2 - OIL PUMP (01) - ENGINE

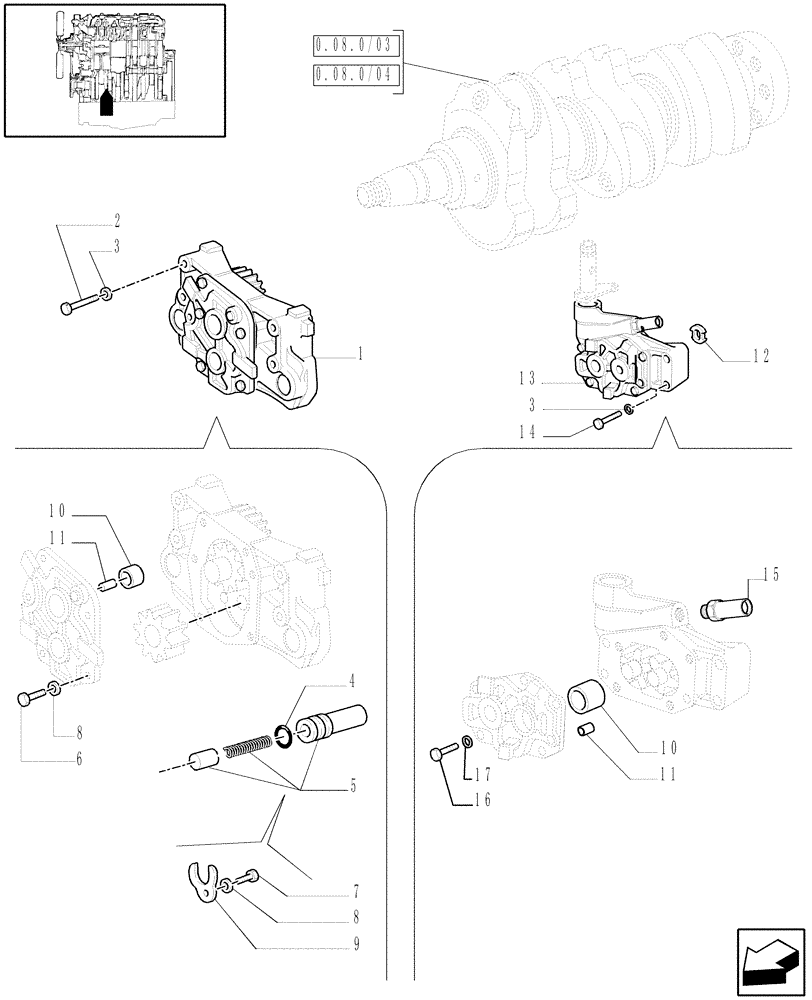

Схема запчастей Case IH JX95 - (0.30.0/05) - (VAR.319-747) TTF ENGINE TIER2 - OIL PUMP (01) - ENGINE
8
3
1
17
7
0.08.0/04
9
16
2
13
4
0.08.0/03
5
3
14
12
6
10
11
15
8
11
10

Артикул

Название

Примечание

Количество

1

500350130

ENGINE OIL PUMP

JX70

1шт.

2

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

JX70

4шт.

3

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

4

14457281

O-RING,0.612" ID x 0.103" Width

JX70

1шт.

5

500350132

HYDRAULIC VALVE

JX70

1шт.

6

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

JX70

5шт.

7

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

JX70

1шт.

8

11194079

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

JX70

6шт.

9

4613353

YOKE

JX70

1шт.

10

4670940

SPARE PART

1шт.

10

4613291

BUSHING,17.62mm ID x 21.03mm OD x 12mm L

17 x 21 x 12

1шт.

11

10839610

DOWEL,M8 x 12mm

D=8 x 12 mm

3шт.

12

98415102

COUPLING RING

JX90, JX95

1шт.

13

98415162

ENGINE OIL PUMP

JX85, JX90, JX95

1шт.

98415162R

REMAN-ENG OIL PUMP

JX70, JX95 BOTH TIER 2 (1/06-)

1шт.

98415162C

CORE-ENGINE OIL PUMP

Return Number

1шт.

14

16044621

SCREW,Hex, M8 x 70mm, Cl 8.8

JX90, JX95

4шт.

15

4834861

HYDRAULIC VALVE

JX90, JX95

1шт.

16

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

JX90, JX95

5шт.

17

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

JX90, JX95

5шт.

Выбрано товаров: 20
