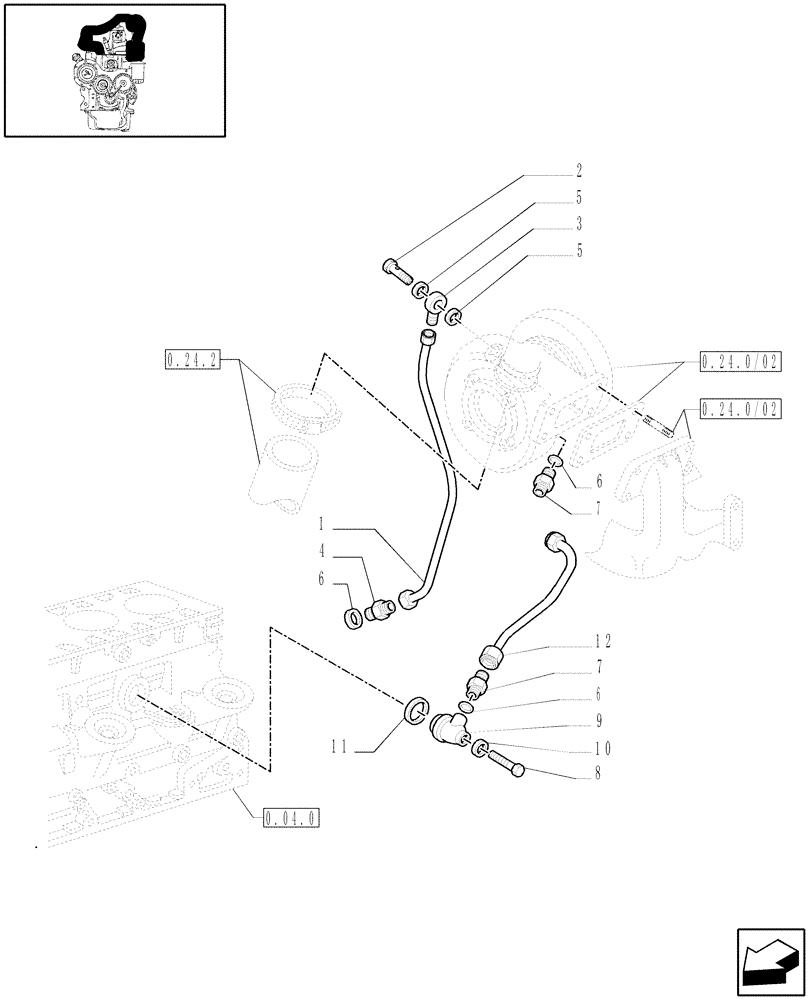

Запчасти Case IH JX95 (0.24.1/01) - (VAR.319-747) TTF ENGINE TIER2 - LINES LINES (01) - ENGINE

1

5095945

PIPE

1шт.

2

5095946

BANJO BOLT

1шт.

3

5095948

BANJO BOLT

1шт.

4

5095951

HYD CONNECTOR

1шт.

5

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

2шт.

6

10257060

SEALING WASHER,16.3mm ID x 22mm OD x 1.5mm Thk

3шт.

7

11212611

HYD CONNECTOR,Str End, M16 x 1.5 x M18 x 1.5

2шт.

8

16044821

SCREW,Hex, M8 x 80mm, Cl 8.8

1шт.

9

99443261

HYD CONNECTOR

1шт.

10

4760498

LOCK WASHER

1шт.

11

4600893

SEAL,37mm ID x 47mm OD x 4mm Thk

1шт.

12

5095954

PIPE

1шт.
