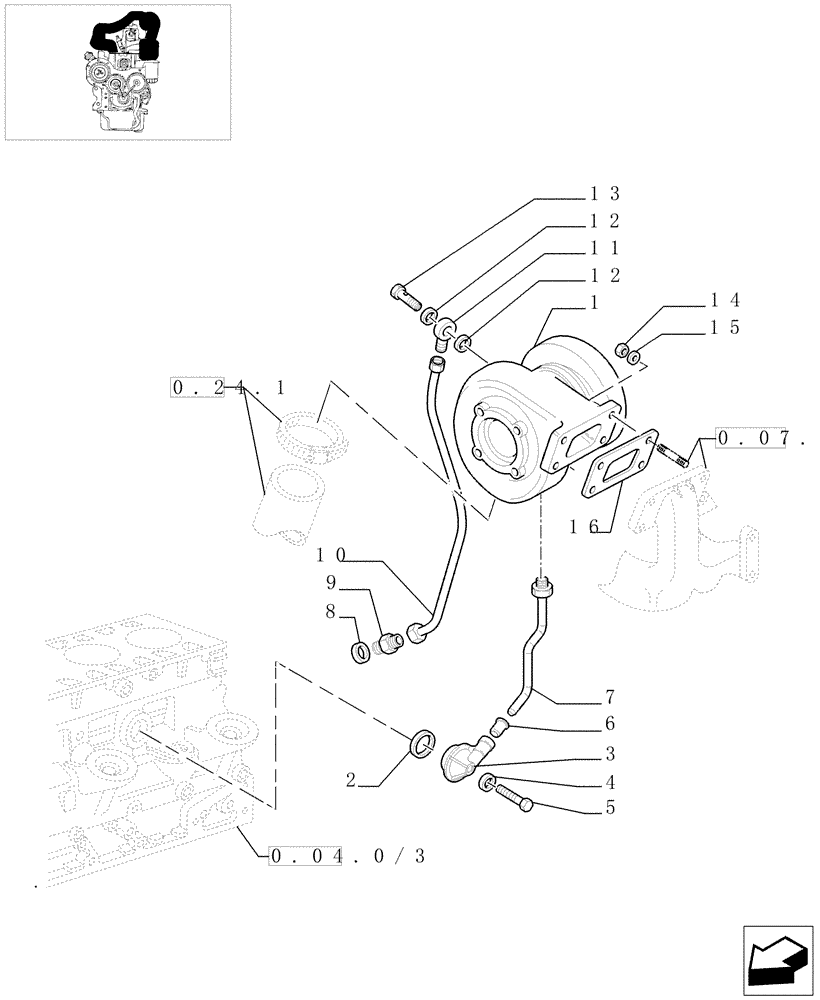

Запчасти Case IH JX95 (0.24.0/01) - SUPERCHARGING (01) - ENGINE

1

99449947

TURBOCHARGER

1шт.

99449947R

REMAN-TURBOCHARGER

JX95 (1/06-)

1шт.

99449947C

CORE-TURBOCHARGER

Return Number

1шт.

2

4600893

SEAL,37mm ID x 47mm OD x 4mm Thk

1шт.

3

504116586

UNION

1шт.

4

70933922

O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro

M7.65 x 1.78

1шт.

5

16592424

SCREW,M8 x 65mm

1шт.

6

504119414

RUBBER BUSHING

1шт.

7

504123342

TUBE

1шт.

8

4858609

WASHER,Brass

D=16 x 20 mm

2шт.

9

99443263

HYD CONNECTOR

1шт.

10

99443268

RIGID TUBE

1шт.

11

61604086

RING

Banjo

1шт.

12

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

D=12 x 15.5 mm

2шт.

13

4851303

HYD CONNECTOR

1шт.

14

500322677

NUT,M8

FLANGE NUT

4шт.

15

13550304

WASHER,8mm ID x 18mm OD x 2mm Thk

D=8.4X16

4шт.

16

4834948

GASKET

1шт.
