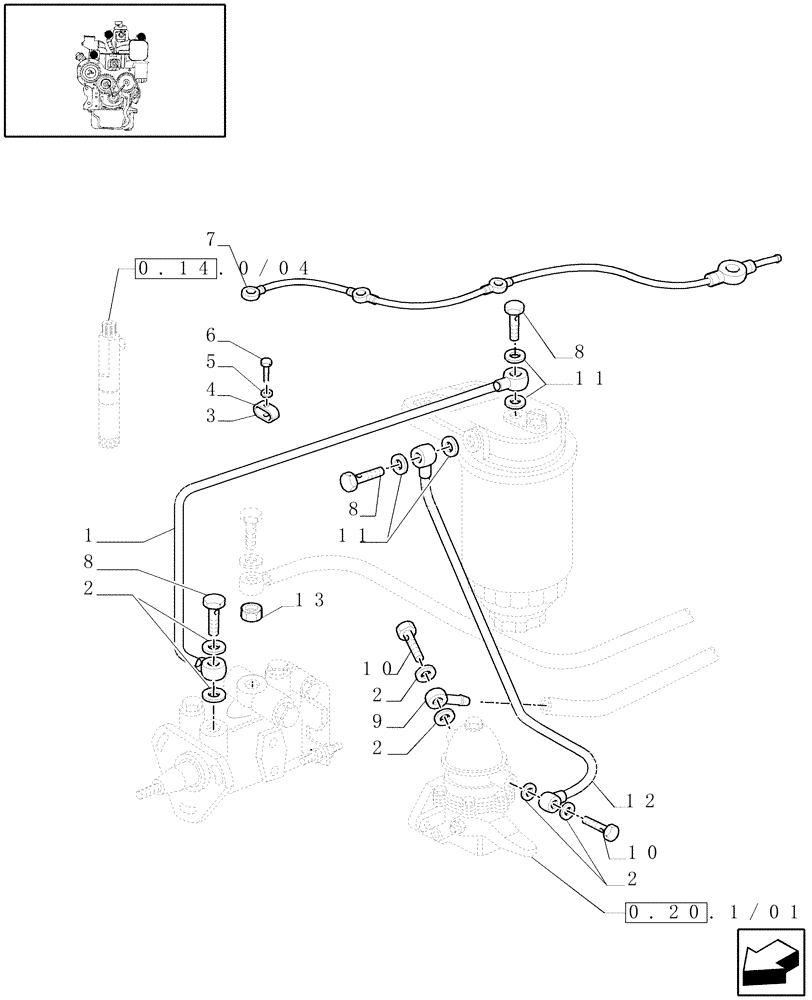

Запчасти Case IH JX95 (0.20.3/04) - (VAR.319-747) TTF ENGINE TIER2 - FUEL SYSTEM (01) - ENGINE

1

5096842

TUBE

JX60, JX70

1шт.

1

5096844

PIPE

JX80, JX90, JX95D

1шт.

2

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

3

4002890

CLAMP

1шт.

4

607942

CLAMP

1шт.

5

11197779

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

6

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

1шт.

7

5097180

INJECTION PIPE

1шт.

8

4864083

BANJO BOLT,M14 x 1.5 x 30mm

2шт.

9

98416591

FITTING

1шт.

10

4864082

BANJO BOLT

4шт.

11

98474308

SEALING WASHER,16mm ID x 22mm OD x 1.5mm Thk

4шт.

12

5096840

PIPE

1шт.

12

5096839

TUBE

JX60, JX70

1шт.

13

5097178

SUPPORT

2шт.
