(1.98.0/03) - (VAR.473) NORTH AMERICA VERSION - DECALS SPANISH

Запчасти Case IH JX95 (1.98.0/03) - (VAR.473) NORTH AMERICA VERSION - DECALS SPANISH (13) - DECALS

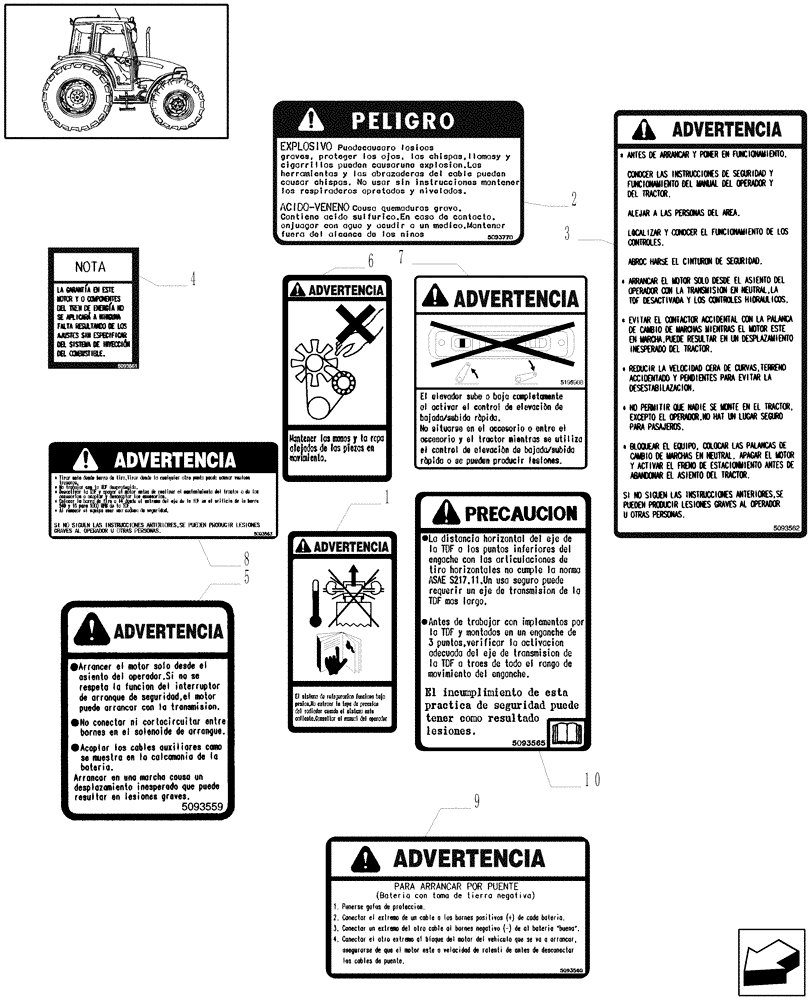

Схема запчастей Case IH JX95 - (1.98.0/03) - (VAR.473) NORTH AMERICA VERSION - DECALS SPANISH (13) - DECALS
7
10
8
1
9
4
2
6
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5093777

DECAL

WARNING, Radiator

2шт.

2

5093778

DECAL

DANGER, Battery

1шт.

3

5093562

DECAL

WARNING, Operating Instructions

1шт.

4

5093561

DECAL

Fuel Injection Pump

1шт.

5

5093559

DECAL

DANGER, Starter

1шт.

6

5093779

DECAL

WARNING, Fan

2шт.

7

5093932

DECAL

WARNING, Lift-o-matic

1шт.

8

5093563

DECAL

WARNING, Drawbar pull

1шт.

9

5093560

DECAL

WARNING, Jump Start

1шт.

10

5093565

DECAL

WARNING, PTO

1шт.
