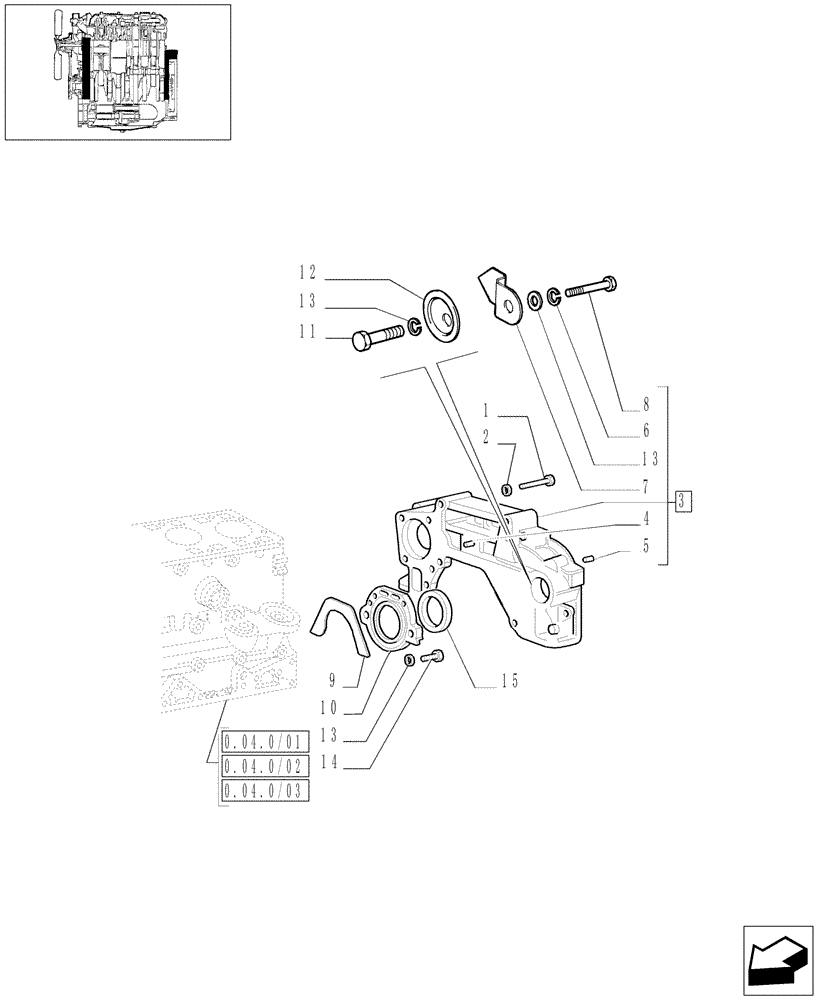

Запчасти Case IH JX95 (0.04.3/01[02]) - COVERS & GASKETS, REAR (01) - ENGINE

1

11115621

SCREW,Hex, M14 x 35mm, Cl 8.8

M14 X 2 X 35

2шт.

1

16613324

SCREW,Hex, M14 x 100mm

Cap, HH, M14 x 2.0 x 100

2шт.

2

11200174

BELLEVILLE WASHER,M14 Bolt Size x 32mm OD x 3.4mm Thk

4шт.

3

504105864

HOUSING

JX70-JX80-JX90

1шт.

3

504105756

HOUSING

JX95

1шт.

4

10839710

DOWEL,M10 x 15.00mm

2шт.

5

4658441

DOWEL,10mm OD x 20mm L

2шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

M8 x 16 x 1.4

1шт.

7

504100357

INDICATOR

JX70-JX80-JX90

1шт.

7

500327025

OPERATOR TIMING REF/

OPERATOR TIMING REF/ JX95

1шт.

8

16605424

SCREW,Hex, M8

Cap, HH, CL 8.8, M8 x 1.25 x 16 mm

1шт.

9

4849994

GASKET,0.8mm Thk

1шт.

10

98489586

COVER

1шт.

11

16605924

SCREW,Hex, M8 x 40mm, Cl 8.8

1шт.

12

4670802

COVER

1шт.

13

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

6шт.

14

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

M8 x 1.25 x 35

4шт.

15

504127327

SEAL,114.8mm ID x 134.8mm OD x 13mm Thk

1шт.
