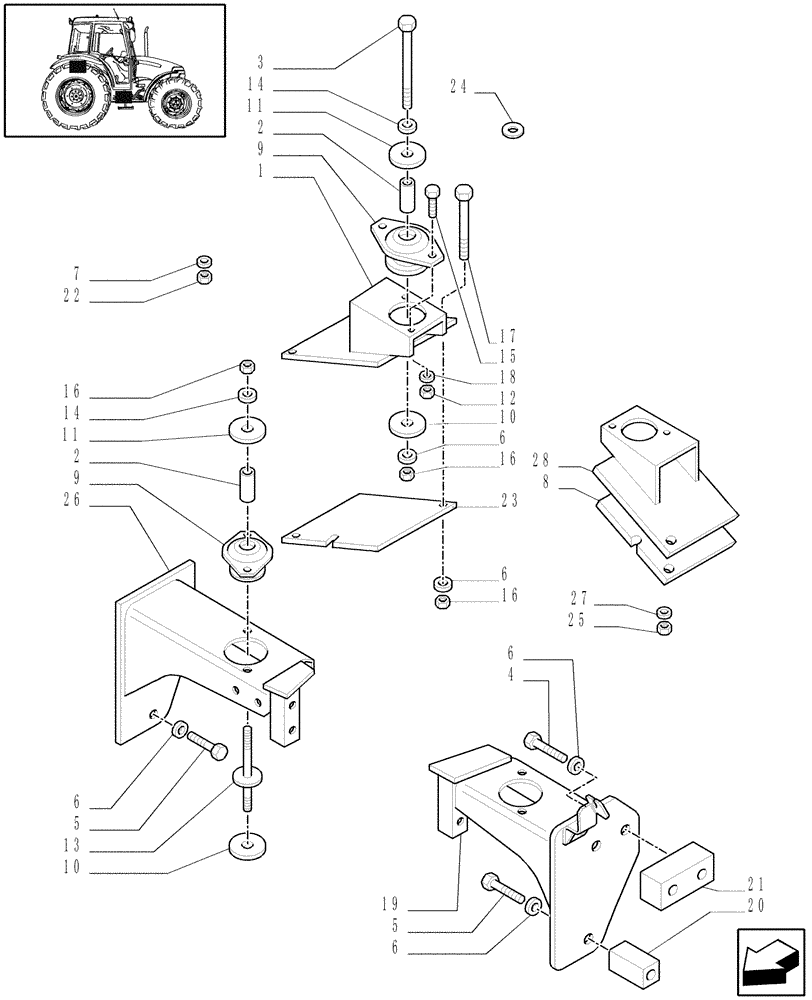

Запчасти Case IH JX95 (1.87.0/03) - CAB SUPPORTS - FOR HIGH CLEARANCE VERSION (08) - SHEET METAL

1

5095909

SUPPORT

RH

1шт.

2

5132014

SPACER,17mm ID x 24mm OD x 57mm L

4шт.

3

15864324

BOLT,Hex, M16 x 1.5 x 130mm, Cl 8.8

2шт.

4

11376237

BOLT,Hex, M16 x 1.5 x 35mm, Cl 8.8

4шт.

5

11391524

SCREW,Hex, M16 x 1.5 x 45mm, Cl 8.8, Full Thd

2шт.

6

10572179

LOCK WASHER,M16

16шт.

7

12601874

SPRING WASHER,19mm ID x 34mm OD x 1.6mm Thk

4шт.

8

5095906

PLATE

2шт.

9

5132016

ISOLATOR

4шт.

10

5092190

SPACER,17mm ID x 90mm OD x 8mm L

4шт.

11

5092191

SPACER,17mm ID x 90mm OD x 4mm L

4шт.

12

12164714

NUT,M10 x 1.25, Cl 8

8шт.

13

5089999

STUD

2шт.

14

13580101

WASHER,16.4mm ID x 32mm OD x 4mm Thk

2шт.

15

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

8шт.

16

12164121

NUT,M16 x 1.5, Cl 10

10шт.

17

5094564

BOLT

8шт.

18

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

8шт.

19

87391993

SUPPORT

LH

1шт.

20

5092835

SPACER

2шт.

21

5092834

SPACER

2шт.

22

10721021

NUT,M18 x 1.5, Cl 10

4шт.

23

5095905

PLATE

1шт.

24

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

D=10

4шт.

25

12574911

NUT,M16 x 1.5, Cl 8

4шт.

26

87519885

SUPPORT

1шт.

27

12601774

WAVE WASHER,17mm ID x 30mm OD x 1.60mm, 6.30mm Max, CST, DAC

6шт.

28

5095910

SUPPORT

1шт.
