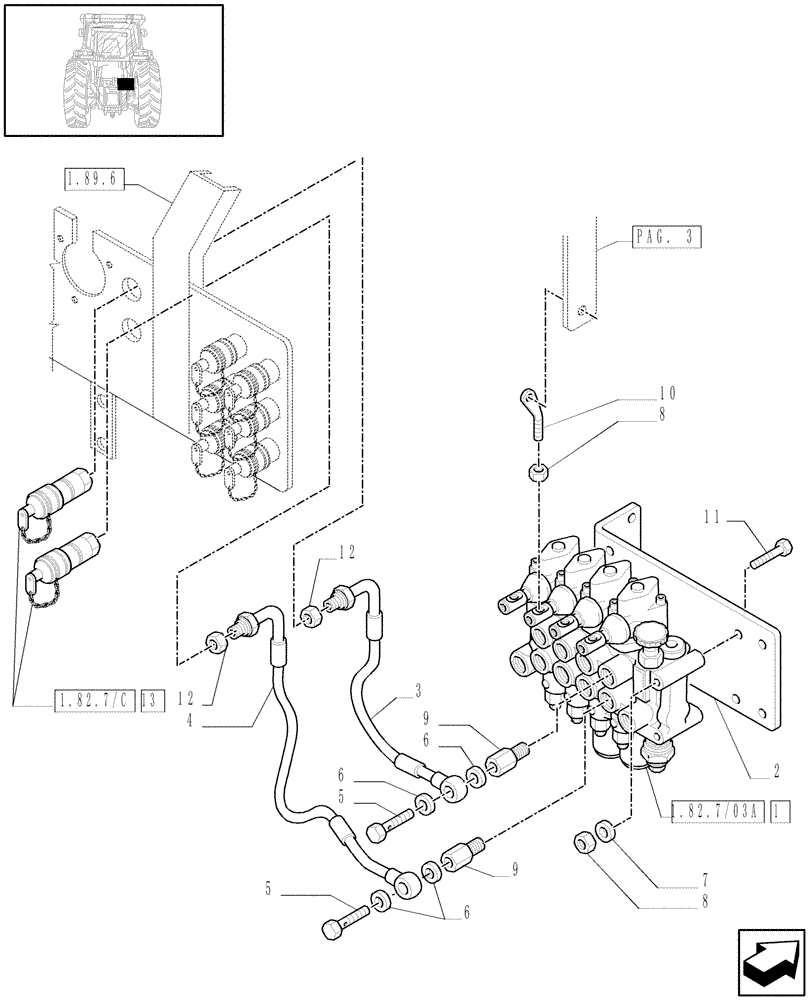

Запчасти Case IH JX95 (1.82.7/03[02]) - (VAR.086) 4 CONTROL VALVES (07) - HYDRAULIC SYSTEM

1

87391323

CONTROL VALVE

ASSY

1шт.

S/D W/Kick Out, Float and Flow Control + 1 Double Acting W/Kick Out and Float + 2 Double Acting

1шт.

2

87391060

SUPPORT

1шт.

3

87391314

FLEXIBLE HOSE

Quick Coupling, Seventh

1шт.

4

87391315

FLEXIBLE HOSE

Quick Coupling, Eighth

1шт.

5

5100984

BANJO BOLT,M18 x 1.5, 34mm L

2шт.

6

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

4шт.

7

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

8

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

7шт.

9

5121789

REDUCER,M18 x 1.5 M ORB; M18 x 1.5 F ORB

2шт.

10

5089075

EYEBOLT,M8

4шт.

11

16044721

SCREW,Hex, M8 x 75mm, Cl 8.8

4шт.

12

5129168

BHD LOCK NUT,M24 x 1.5

2шт.

13

5093853

COUPLING, QUICK, FEM,Black

Female, Black

2шт.
