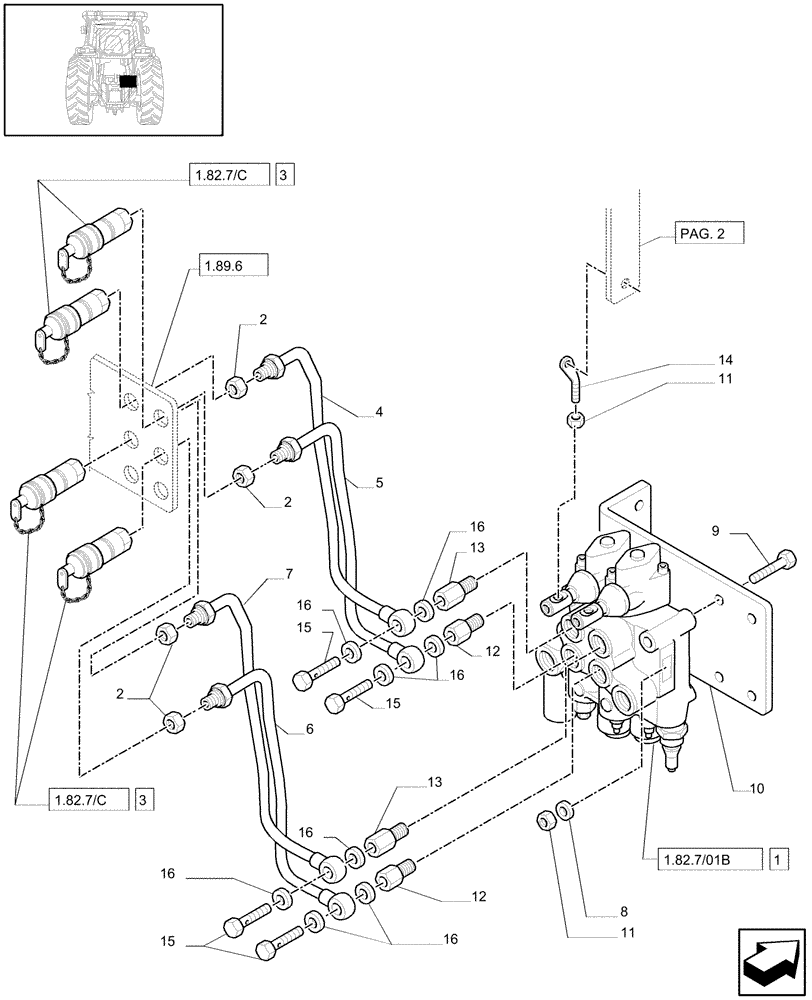

Запчасти Case IH JX95 (1.82.7/01[04]) - (VAR.413/1) 2 CONTROL VALVES - END HFJ080116 (07) - HYDRAULIC SYSTEM

1

5095110

HYDRAULIC VALVE

ASSY, VAR.419/1

1шт.

(1 S/D + 1 Double Acting W/Float and Kick out)

1шт.

2

5129168

BHD LOCK NUT,M24 x 1.5

ASSY, VAR. 413/1

4шт.

3

5093853

COUPLING, QUICK, FEM,Black

ASSY, VAR. 417

4шт.

4

5092065

TUBE

Quick Coupling, First, 449mm L

1шт.

5

5092067

TUBE

Quick Coupling, Second, 415 mm L

1шт.

6

5094320

TUBE

Quick Coupling, Third, 419 mm L

1шт.

7

5094324

TUBE

Quick Coupling, Fourth, 364.5 mm L

1шт.

8

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

3шт.

9

16044421

SCREW,Hex, M8 x 60mm, Cl 8.8

2шт.

10

5092077

SUPPORT

1шт.

11

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

12

5092079

SPACER,M18 x 1.5 NPT x M18 x 1.5

M18/59MM

2шт.

13

5092080

SPACER,M18 x 1.5 Male ORFS x M18 x 1.5 Female ORFS

M18/29MM

2шт.

14

5089075

EYEBOLT,M8

2шт.

15

5100984

BANJO BOLT,M18 x 1.5, 34mm L

7шт.

16

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

19шт.
