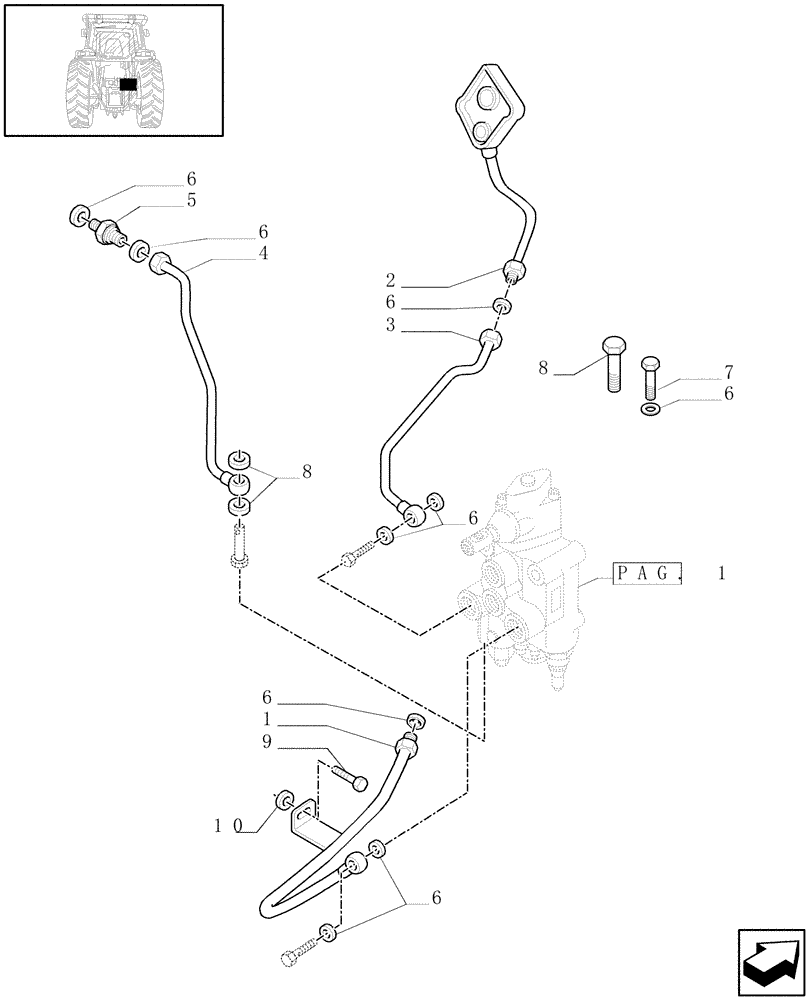

Запчасти Case IH JX95 (1.82.7[03]) - (VAR.366-412) 1 CONTROL VALVE - PIPES (07) - HYDRAULIC SYSTEM

1

5092047

TUBE

1шт.

2

5128343

RIGID TUBE

1шт.

3

5092061

BRAKE LINE

1шт.

4

5097419

HYD TUBE

1шт.

5

5087002

HYD CONNECTOR

1шт.

6

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

21шт.

7

15540831

BOLT,Hex, M12 x 1.25 x 50mm, Cl 10.9

15шт.

8

15540931

BOLT,Hex, M12 x 1.25 x 55mm, Cl 10.9

2шт.

9

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

10

10264560

SEAL,24mm ID x 32mm OD x 1.5mm Thk

1шт.
