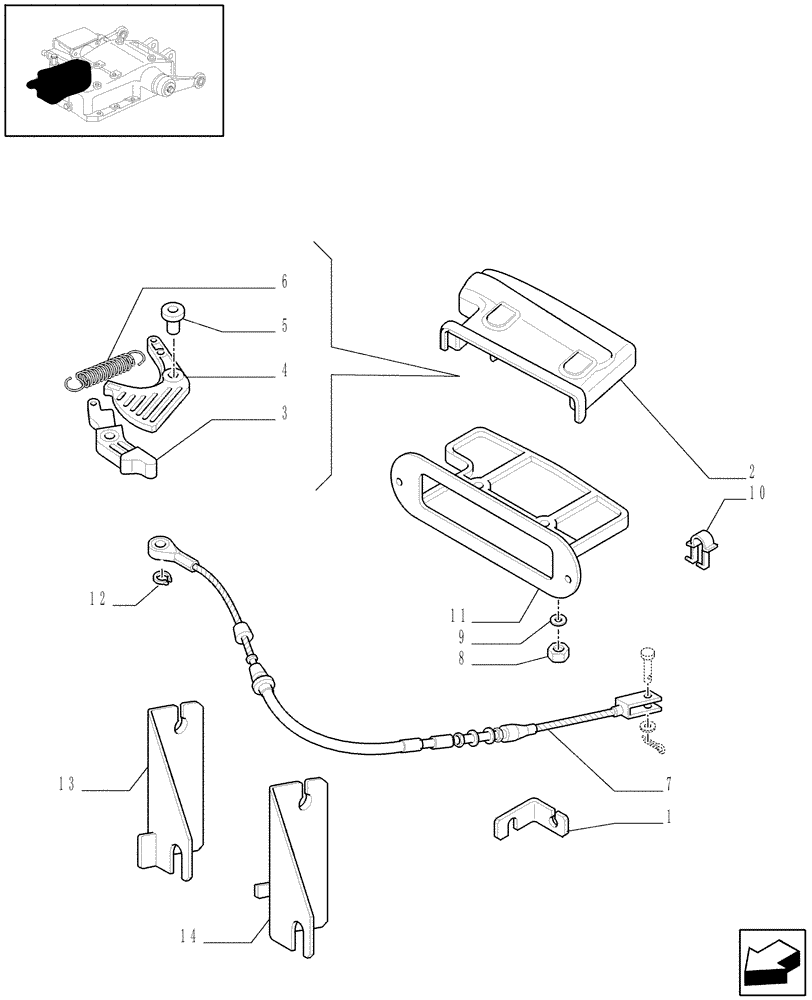

Запчасти Case IH JX95 (1.82.5[03A]) - LIFT CONTROLS - LEVERS AND FLEXIBLE CABLE - D6492 (07) - HYDRAULIC SYSTEM

1

5090284

SUPPORT

1шт.

2

87390496

SUPPORT

1шт.

3

87564632

LATCH

1шт.

4

87564634

LEVER

1шт.

5

87564636

SPACER

2шт.

6

5128638

SPRING

1шт.

7

84238070

CABLE,1355mm L

1шт.

8

12574211

NUT,M6 x 1, Cl 8

2шт.

9

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

10

14569680

SPRING CLIP,6.5mm Hole, Gray

L/CAB

1шт.

11

87390528

SUPPORT

W/CAB

1шт.

12

11087676

CIRCLIP,M5

1шт.

13

87601161

SUPPORT

1шт.

14

84488914

SUPPORT

JX80 - JX90 - JX95

1шт.

Electrohydraulic Differential Lock e Electrohydraulic 4WD Engagement, VAR.384

1шт.
