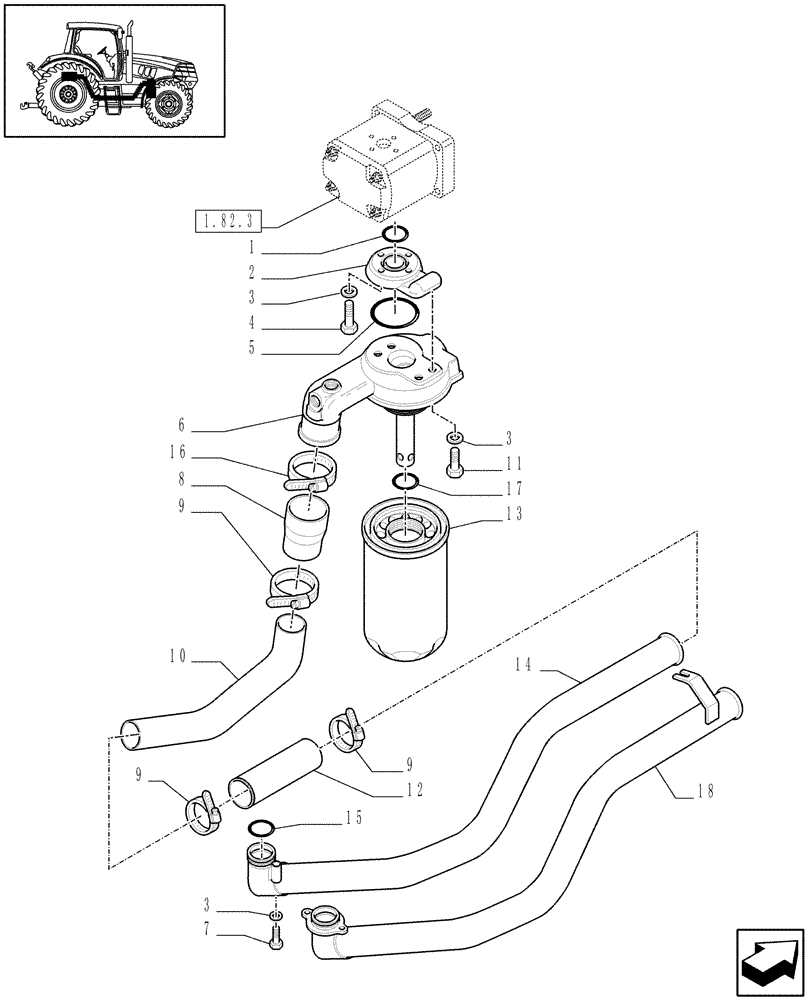

Запчасти Case IH JX95 (1.82.1[01A]) - LIFTER, LINES - D6660 (07) - HYDRAULIC SYSTEM

1

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

2шт.

2

47129555

PLATE

1шт.

3

12601574

WAVE WASHER,Wave, M13

9шт.

4

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

4шт.

5

14460180

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

1шт.

6

84175176

FILTER HEAD

D=32 x 51

1шт.

7

15540734

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

, Serial Range: -C6864

1шт.

7

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

, Start Serial: D6864

2шт.

8

84198652

LARGE HOSE

HOSE,LARGE

1шт.

9

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

3шт.

10

84232796

PIPE

JX60, JX70

1шт.

10

84247999

PIPE

JX80, JX90

1шт.

10

84248000

PIPE

JX95

1шт.

11

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

4шт.

12

87626258

FUEL HOSE,45.00 mm ID x 90.00 mm, SAE J200

1шт.

13

84123428

HYDRAULIC OIL FILTER

1шт.

14

84246897

PIPE

, Serial Range: -C6864

1шт.

15

5174527

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

16

5098812

CLAMP,50mm - 70mm

1шт.

17

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

2шт.

18

84344746

PIPE

Oil Suction Rear, Start Serial: D6864

1шт.
