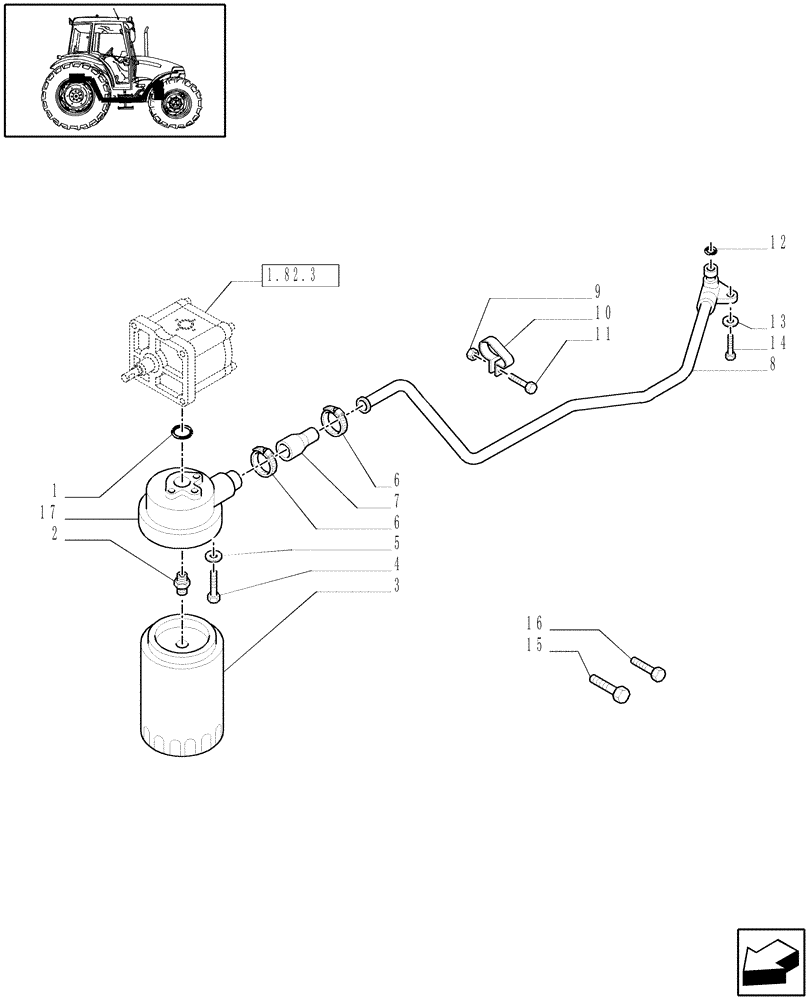

Запчасти Case IH JX95 (1.82.1[01]) - LIFTER, LINES - C6660 (07) - HYDRAULIC SYSTEM

1

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

2

5085665

ADAPTER,M24 x 1.5 x 1-1/8" - 16

1шт.

3

84123428

HYDRAULIC OIL FILTER

1шт.

4

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

3шт.

5

14330260

SEALING WASHER,M8.2 x 12 x 1

3шт.

6

5085778

CLAMP

D=32 x 51

2шт.

7

5118862

HOSE,31.00 mm ID, 35.00 mm ID x 75.00 mm

1шт.

8

5092055

PIPE

JX60, JX70

1шт.

8

5092057

HYD TUBE

JX80, JX90

1шт.

8

5092059

HYD TUBE

JX95

1шт.

9

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

10

5120430

HOSE CLIP

1шт.

11

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

12

14463680

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

13

10571979

LOCK WASHER,M12

2шт.

13

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

14

15540724

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8

1шт.

15

14308221

HEX SOC SCREW,M10 x 1.25 x 65mm, Cl 8.8

1шт.

16

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

17

5094372

FILTER HEAD

1шт.
