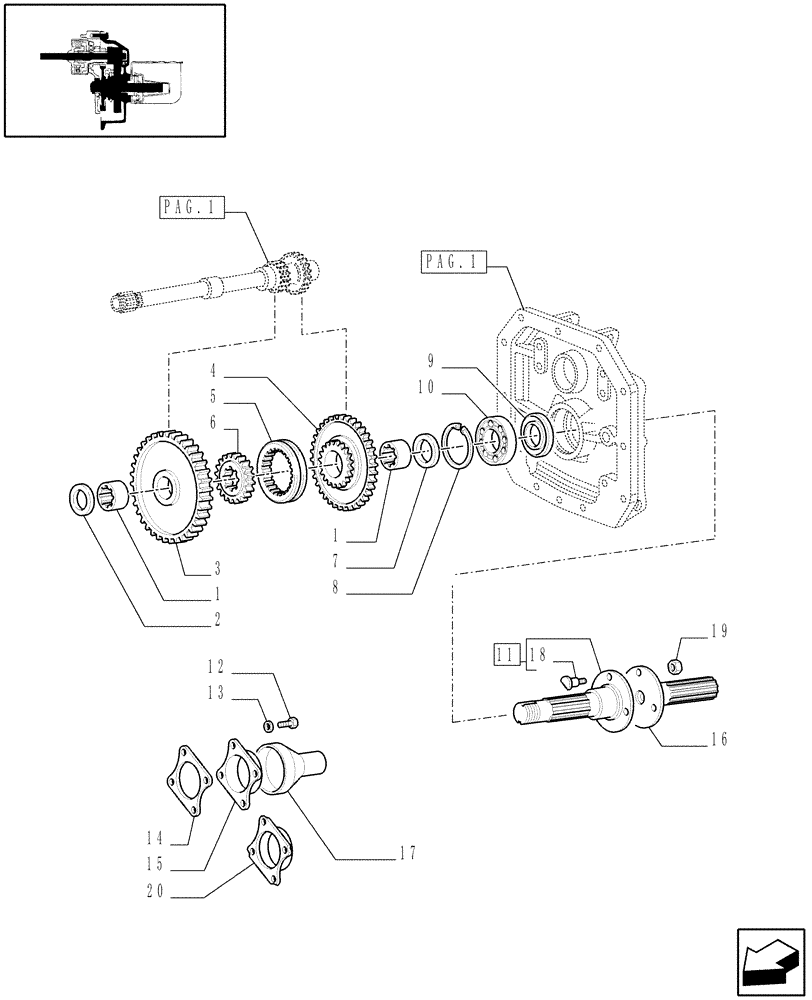

Запчасти Case IH JX95 (1.80.1/02[02]) - (VAR.805) POWER TAKE-OFF 540/1000 RPM WITH GROUND SPEED AND ISO PROTECTION SHIELD (07) - HYDRAULIC SYSTEM

1

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

2шт.

2

5122797

THRUST WASHER,35mm ID x 62mm OD x 6mm Thk

1шт.

3

5109733

DRIVEN GEAR

540 RPM

1шт.

4

5109736

DRIVEN GEAR

1000 RPM

1шт.

5

5129513

SYNCHRONIZER,24T

1шт.

6

5129512

SLEEVE,24T, 14T

1шт.

7

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

8

11062476

SNAP RING,M90, Int

1шт.

9

5119203

SEAL,55mm ID x 80mm OD x 10mm Thk

55X80X10

1шт.

10

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

40 x 90 x 23 mm

1шт.

11

5117501

SHAFT,181mm L, 14T

1шт.

12

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

13

14499401

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

4шт.

14

4997320

GUARD

1шт.

15

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

, Serial Range: -C6954

1шт.

16

5185602

SHAFT,540 rpm, 6 Teeth

540 RPM, Z=6

1шт.

17

5171520

SHIELD,132mm L

1шт.

18

44012300

PIN,14mm OD x 37mm L

3шт.

19

16105025

LOCK NUT,M12 x 1.25, Cl 10

3шт.

20

84402411

GUARD

, Start Serial: D6954

1шт.
