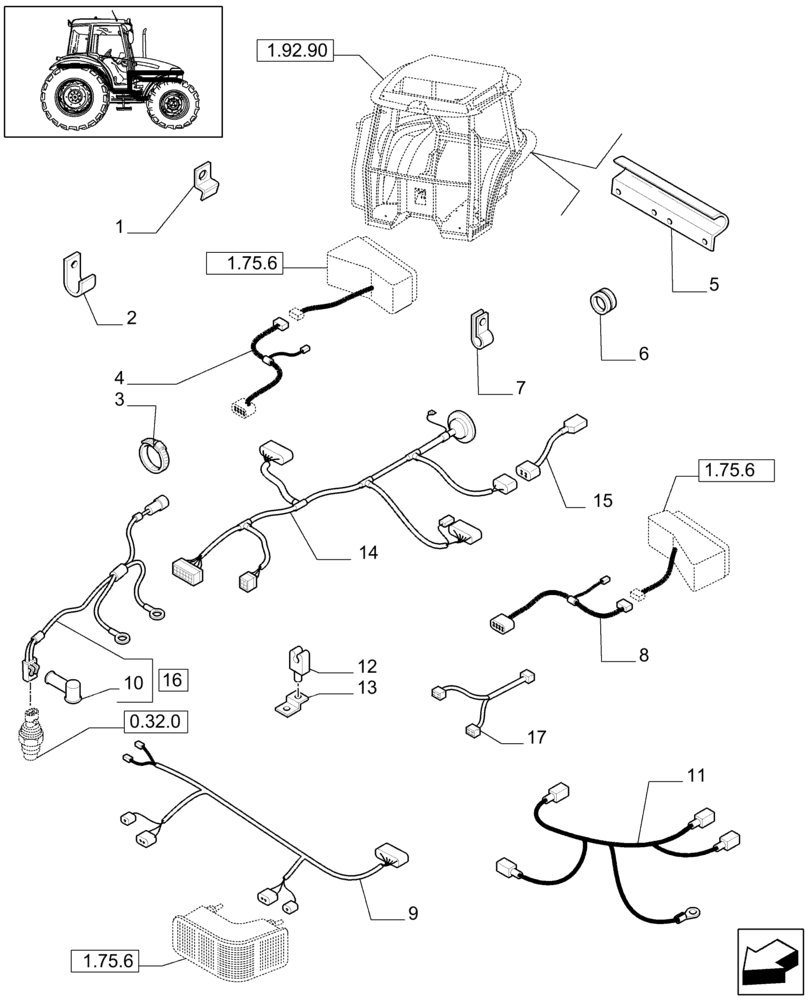

Запчасти Case IH JX95 (1.75.4[02A]) - AUXILIARY CABLESV - D6660 (06) - ELECTRICAL SYSTEMS

1

5093416

CLIP

1шт.

2

5088304

CLAMP

1шт.

3

5112712

COLLAR,M4.8 x 283

10шт.

3

5095054

COLLAR

D=540

1шт.

4

87392856

WIRE HARNESS

Right Wing Harness

1шт.

4

87392840

WIRE HARNESS

Right Wing Harness, VAR. 007

1шт.

5

5093288

COVER

2шт.

6

5093911

GROMMET

2шт.

7

5085041

COLLAR

1шт.

8

87392857

WIRE HARNESS

Left Wing Harness

1шт.

8

87392843

WIRE HARNESS

Left Wing Harness, VAR. 007

1шт.

9

5097459

WIRE HARNESS

Head Lamp Harness

1шт.

10

47135748

PROTECTION CAP

1шт.

11

5094098

WIRE HARNESS

Steering Low Pressure Alarm

1шт.

12

14574180

CLIP,15mm ID, 6mm Bolt Hole, P Type

1шт.

13

5121360

LOCKING PLATE

1шт.

14

84241036

WIRE HARNESS

Chassis Harness, W/CAB

1шт.

14

84148266

WIRE HARNESS

Chassis Harness, VAR.007

1шт.

14

84249667

WIRE HARNESS

Chassis Harness, L/CAB

1шт.

15

84148268

ELECTRIC CABLE

Hand Brake

1шт.

15

84148269

ELECTRIC CABLE

Hand Brake, VAR.007

1шт.

16

504088077

WIRE HARNESS

1шт.

Stop Engine and KSB

1шт.

17

47365084

CABLE

1шт.
