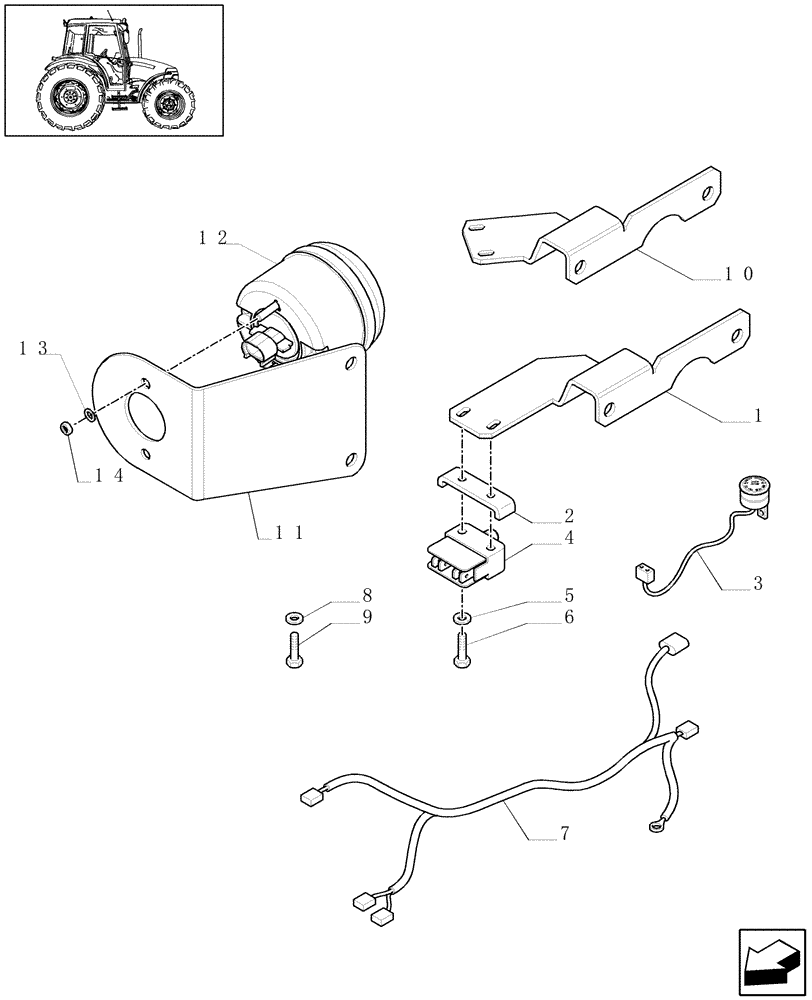

Запчасти Case IH JX95 (1.75.0/03) - (VAR.358-373) REVERSE SPEED ALARM (06) - ELECTRICAL SYSTEMS

1

84201962

SUPPORT

VAR.358

1шт.

2

5093339

BRACKET

1шт.

3

5094111

HORN

1шт.

4

87702928

PUSH BUTTON SWITCH

1шт.

5

12601074

WAVE WASHER,4.30mm ID x 9mm OD x 0.50mm, 2mm Max, CST, DAC

2шт.

6

13272617

SCREW,Pozidriv Pan Hd, M4 x 25mm, Cl 5.8

2шт.

7

84223036

WIRE HARNESS

1шт.

8

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

3шт.

9

16100821

NUT,M8, Cl 10

3шт.

10

84202407

SUPPORT

VAR.373

1шт.

11

84223037

SUPPORT

, Start Serial: D6476

1шт.

12

84185527

LIGHT,12V, 21W, Clear

TAIL LAMP, Start Serial: D6476

1шт.

13

14497806

WASHER

, Start Serial: D6476

2шт.

14

86509265

NUT,M5, Cl 10

, Start Serial: D6476

2шт.
