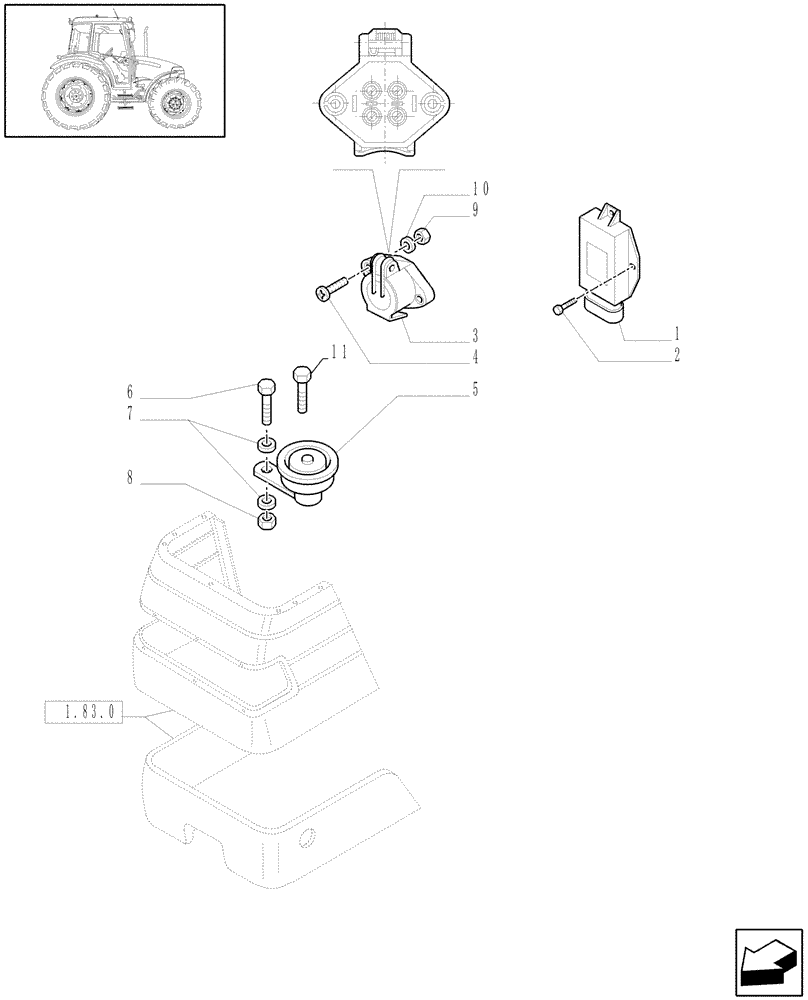

Запчасти Case IH JX95 (1.75.0/01) - (VAR. 007) NA PACKAGE - ELECTRIC CONTROLS (06) - ELECTRICAL SYSTEMS

1

47127173

FLASHER UNIT

1шт.

2

15644001

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 13mm

2шт.

3

83982634

POWER SOCKET

(ISO) Trailer

1шт.

4

13272621

SCREW,Cross Pan Hd, M4 x 25mm, Cl 8.8

2шт.

81864735

SOCKET

Connector Male, not shown

1шт.

5

5087129

HORN

1шт.

6

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

7

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

8

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

9

10794014

NUT,M4, Cl 8

2шт.

10

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

11

10559807

SELF-TAP SCREW,Hex Flg, M6.3 x 16mm

1шт.
