(1.41.0/01[04]) - 2WD FRONT AXLE - LEVERS - FOR HIGH CLEARANCE VERSION

Запчасти Case IH JX95 (1.41.0/01[04]) - 2WD FRONT AXLE - LEVERS - FOR HIGH CLEARANCE VERSION (04) - FRONT AXLE & STEERING

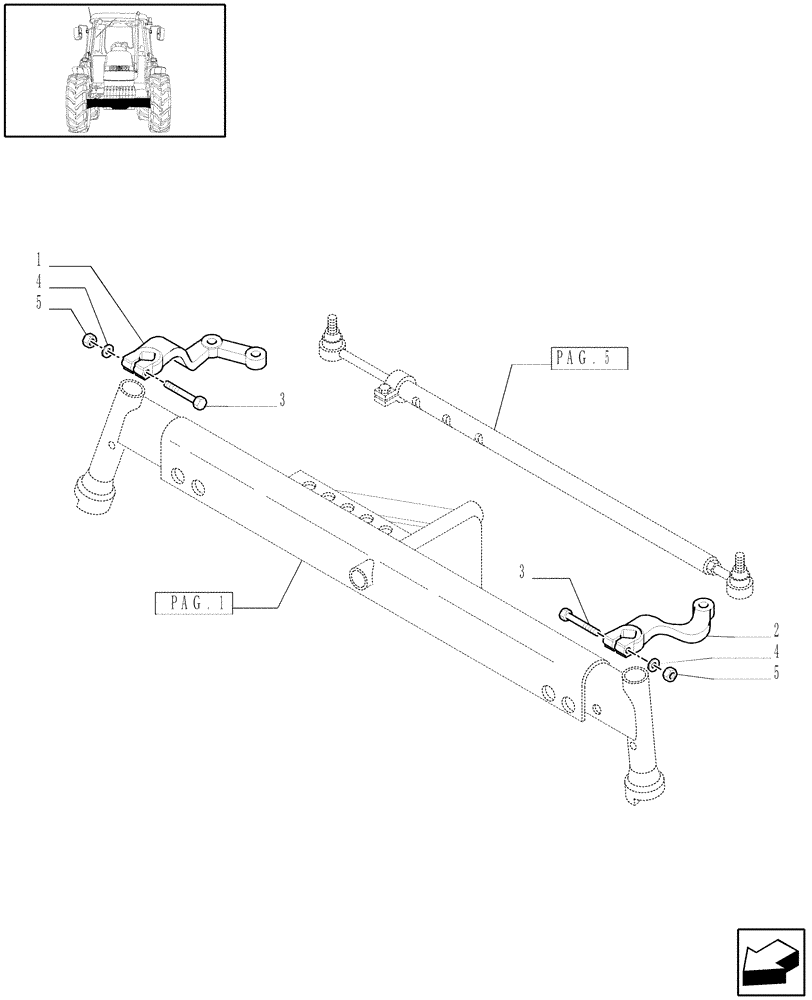

Схема запчастей Case IH JX95 - (1.41.0/01[04]) - 2WD FRONT AXLE - LEVERS - FOR HIGH CLEARANCE VERSION (04) - FRONT AXLE & STEERING
g
a
5
1
g
1
4
5
p
3
a
5
3
.
p
.
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5110378

STEERING ARM

RH

1шт.

2

5110377

STEERING ARM

LH

1шт.

3

15977621

BOLT,Hex, M14 x 1.5 x 70mm, Cl 8.8

M14x1.5x70

2шт.

4

10572079

LOCK WASHER,M14

2шт.

5

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

2шт.
