(1.40.12/10A) - (VAR.386) CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER & LIMITED SLIP(40KM/H)-DIFFERENTIAL SHAF-BREAKDOWN

Запчасти Case IH JX95 (1.40.12/10A) - (VAR.386) CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER & LIMITED SLIP(40KM/H)-DIFFERENTIAL SHAF-BREAKDOWN (04) - FRONT AXLE & STEERING

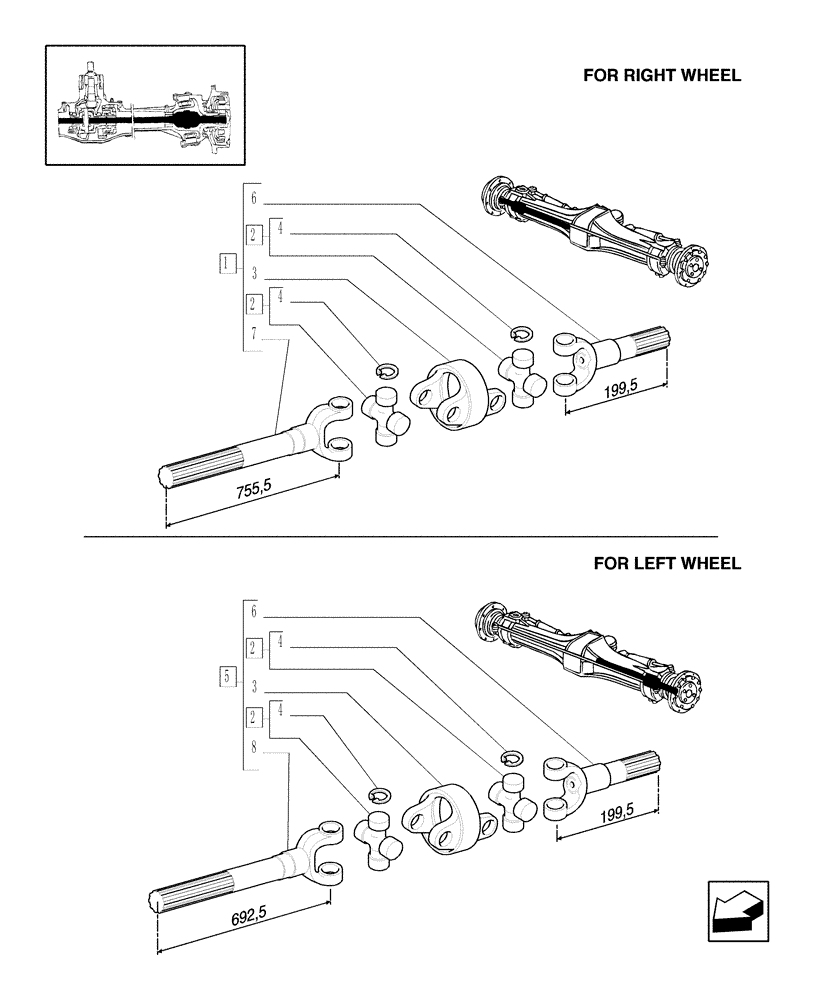

Схема запчастей Case IH JX95 - (1.40.12/10A) - (VAR.386) CLASS 2 FRONT AXLE WITH 2ND STEERING CYLYNDER & LIMITED SLIP(40KM/H)-DIFFERENTIAL SHAF-BREAKDOWN (04) - FRONT AXLE & STEERING
6
2
6
2
2
2
8
4
4
7
5
1
4
3
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5189210

AXLE-SHAFT, ARTICULA

RH

1шт.

2

5191457

SPIDER

4шт.

3

87361042

YOKE

2шт.

4

5191548

CIRCLIP

16шт.

5

5189211

AXLE-SHAFT, ARTICULA

LH

1шт.

6

5191459

SHORT SHAFT

2шт.

7

5191552

HALF SHAFT

1шт.

8

5191553

HALF SHAFT

1шт.
