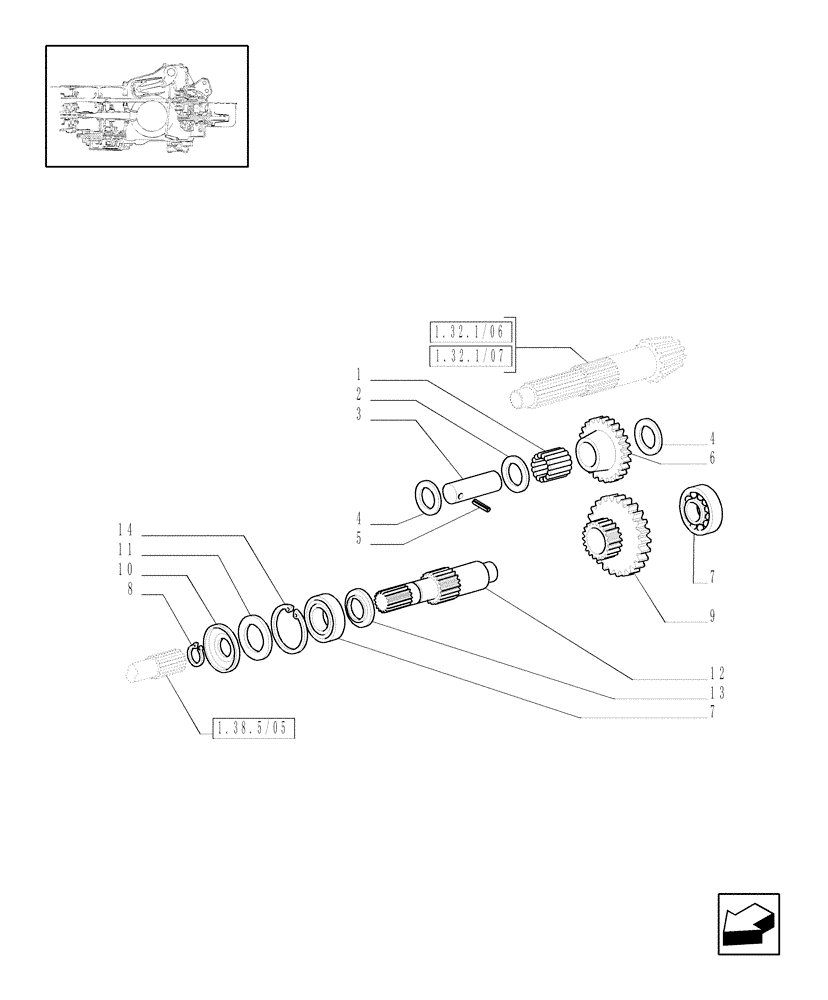

Запчасти Case IH JX95 (1.33.1/02) - TRANSMISSION GEARINGS - FOR HIGH CLEARANCE VERSION (04) - FRONT AXLE & STEERING

1

5150366

ROLLER BEARING,25 mm ID x 35 mm OD x 25 mm

1шт.

2

5150365

SPACER

JX80, JX90

1шт.

2

5094874

SPACER

JX95

1шт.

3

5150364

PIN

1шт.

4

4997510

THRUST WASHER,25.7mm ID x 45mm OD x 0.8mm Thk

2шт.

5

13943070

ROLL PIN,M6 x 50, Coiled

1шт.

6

5150367

IDLER GEAR

JX80, JX90

1шт.

6

5094589

GEAR

JX95

1шт.

7

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

2шт.

8

11069076

SNAP RING,M45, Ext

1шт.

9

5150368

IDLER GEAR

JX80, JX90

1шт.

9

5094588

GEAR

JX95

1шт.

10

5150371

DISC,35.2mm ID x 80mm OD x 6mm Thk

1шт.

11

5150370

SEAL,35mm ID x 80mm OD x 10mm Thk

35 x 80 x 10

1шт.

12

5150369

CONTROL SHAFT

JX80, JX90

1шт.

12

5094590

SHAFT

JX95

1шт.

13

5119080

DISC,35.1mm ID x 78mm OD x 1.5mm Thk

1шт.

14

11061976

SNAP RING,M80, Int

1шт.
