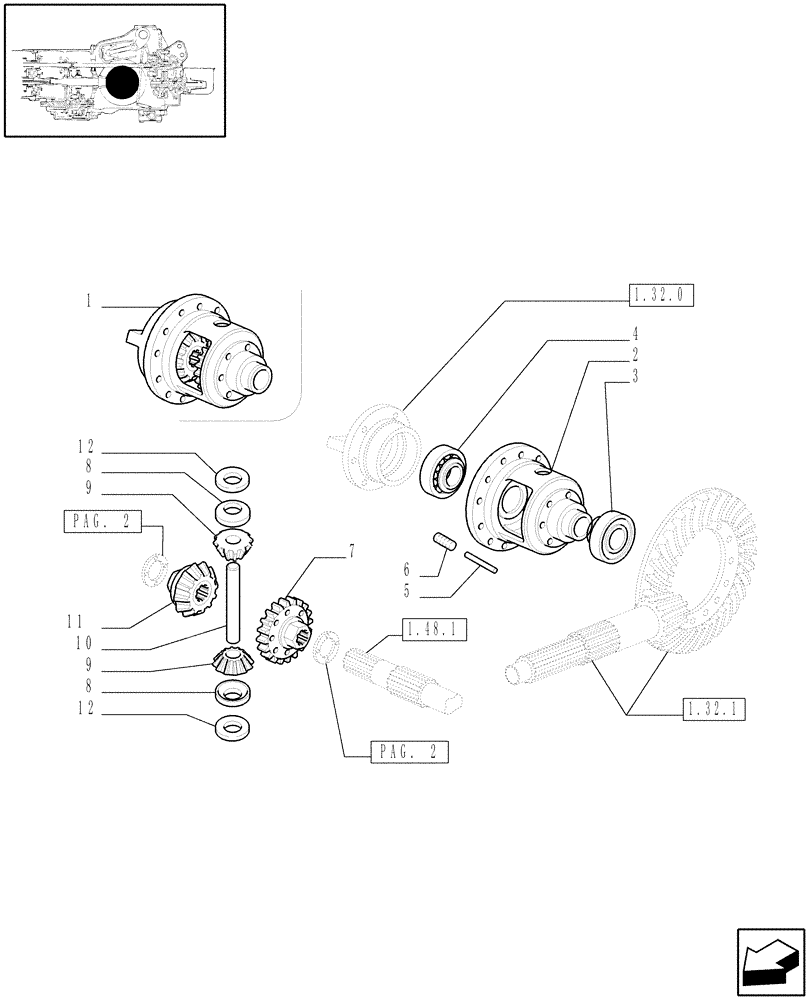

Запчасти Case IH JX95 (1.32.4/01[01]) - DIFFERENTIAL GEARINGS - DIFFERENTIAL BOX AND GEARS (03) - TRANSMISSION

1

87523515

DIFFERENTIAL GEAR

JX80 - JX90, Serial Range: -C6829

1шт.

1

5117236

DIFFERENTIAL GEAR

JX80 - JX90, Start Serial: D6829

1шт.

1

5090543

DIFFERENTIAL

JX95, Serial Range: -C6826

1шт.

1

84345898

DIFFERENTIAL

JX95, Start Serial: D6826

1шт.

2

5173246

HOUSING

JX80 - JX90

1шт.

2

5090264

CASE

JX95

1шт.

3

26799990

TAPERED BEARING,55mm ID x 100mm OD x 22.75mm W

1шт.

4

24903460

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

1шт.

5

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.

6

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

7

4997230

PLANETARY GEAR,19T

1шт.

8

4991658

THRUST WASHER,25mm ID x 54.5mm OD x 1.5mm Thk

JX80 - JX90

2шт.

8

5089372

THRUST WASHER

JX95

2шт.

9

4991695

IDLER PINION,11T

JX80 - JX90

2шт.

9

5089371

GEAR

JX95, Serial Range: -C6826

2шт.

9

84343773

GEAR

JX95, Start Serial: D6826

2шт.

10

5094841

PIN

JX80 - JX90

1шт.

10

84474220

PIN

JX95

1шт.

10

5089373

PIN

JX95, Serial Range: -C6826

1шт.

10

84344710

PIN

JX95, Start Serial: D6826

1шт.

11

5149551

PLANETARY GEAR,19T

1шт.

12

5085514

THRUST WASHER,51mm ID x 70mm OD x Smm Thk

JX95

2шт.
