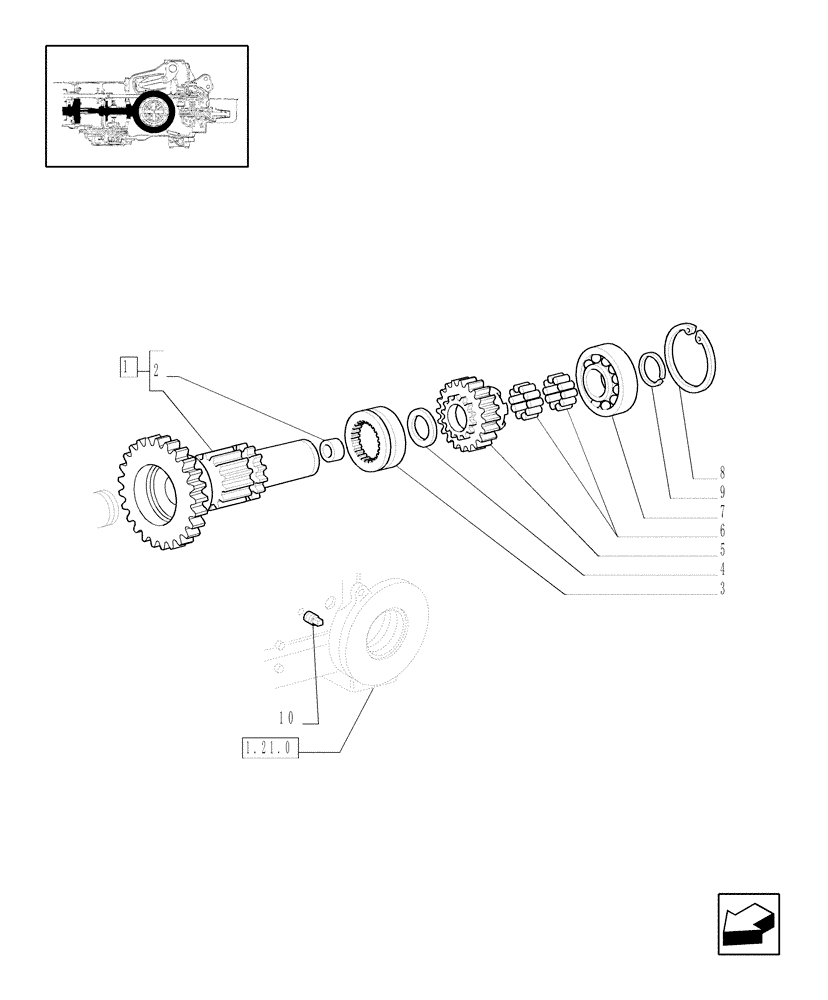

Запчасти Case IH JX95 (1.32.1/08[02]) - (VAR.382) 20 X 12 COMBINATA ( SYNCHRO SHUTTLE + CREEPER) - DRIVE SHAFT AND GEARINGS (03) - TRANSMISSION

1

5176778

SHAFT

JX80, JX90

1шт.

1

5176751

MAIN SHAFT

JX95

1шт.

2

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

1шт.

3

5125880

SPLINED COUPLING,17T

1шт.

4

5109683

THRUST WASHER,42.05mm ID x 56mm OD x 4mm Thk

1шт.

5

5131169

GEAR

1шт.

6

5109747

NEEDLE BEARING,42mm ID x 47mm OD x 27mm W

2шт.

7

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

60 x 110 x 22 mm

1шт.

8

11075476

SNAP RING,M110, Int

1шт.

9

5117076

CIRCLIP,M47, Ext

1шт.

10

14323914

PLUG,M10 x 1.25 x 14mm L

1шт.
