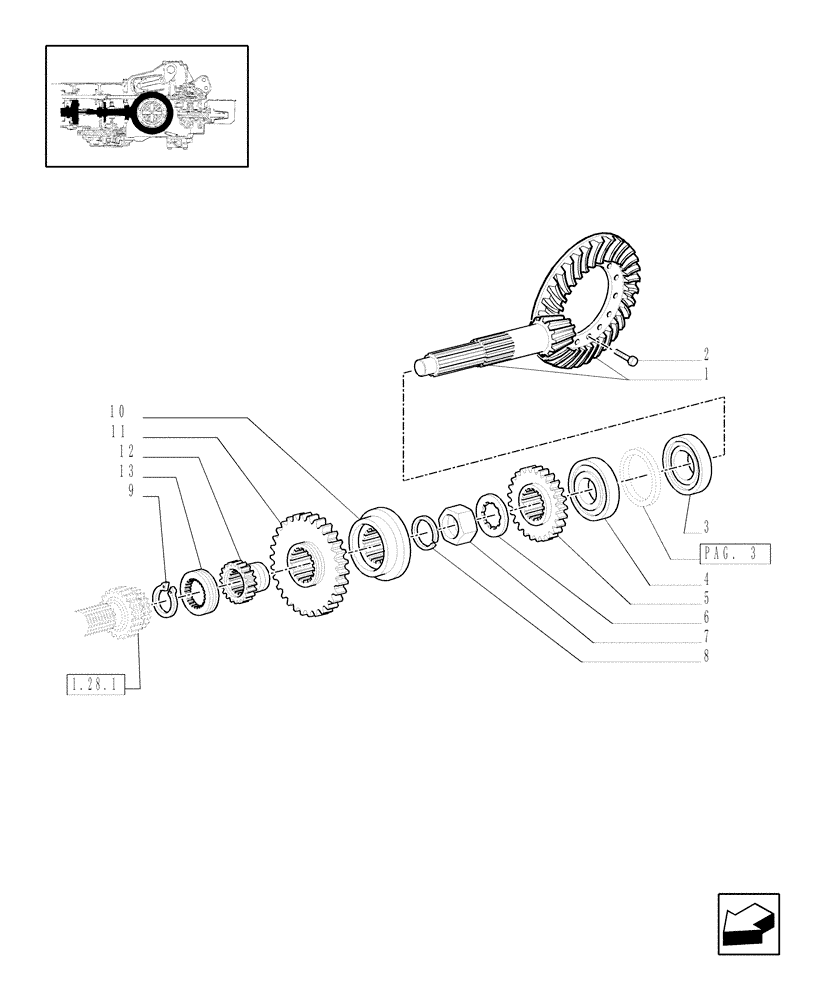

Запчасти Case IH JX95 (1.32.1/08[01]) - (VAR.382) 20 X 12 COMBINATA ( SYNCHRO SHUTTLE + CREEPER) - BEVEL GEAR PAIR (03) - TRANSMISSION

1

87534857

BEVEL GEAR

Ring & Pinion, JX80, JX90

1шт.

2

14274631

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

JX80, JX90

12шт.

3

5138664

TAPERED BEARING,45mm ID x 100mm OD x 38.25mm W

1шт.

4

5130990

TAPERED BEARING,45mm ID x 100mm OD x 20mm W

1шт.

5

5131674

DRIVEN GEAR

1шт.

6

5119261

LOCK WASHER,38mm ID x 70mm OD x 1.5mm Thk

1шт.

7

5117744

NUT

1шт.

8

5127762

HALF-RING

2шт.

9

11068976

SNAP RING,M42, Ext

1шт.

10

5131681

SPACER

JX80, JX90

1шт.

10

5160748

SPACER

JX95D

1шт.

11

5131680

DRIVEN GEAR

JX80, JX90

1шт.

11

5160747

GEAR

JX95D

1шт.

12

5125009

SPLINED COUPLING,10T Internal / 23T External

JX80, JX90

1шт.

12

5160749

SPLINED COUPLING,10T Internal / 23T External

JX95D

1шт.

13

5125010

SLEEVE,23T

1шт.
