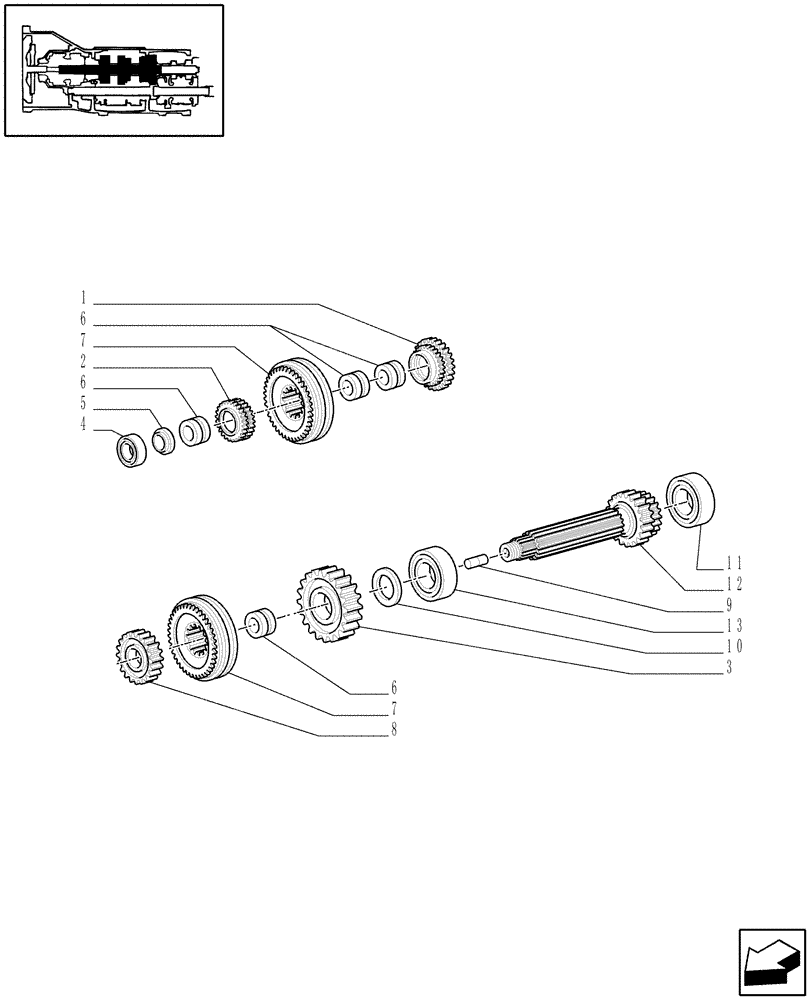

Запчасти Case IH JX95 (1.28.1/04[04]) - (VAR.382) 20 X 12 COMBINATA ( SYNCHRO SHUTTLE + CREEPER) - SHAFTS AND GEARS (03) - TRANSMISSION

1

5179673

DRIVEN GEAR

1шт.

2

5172050

DRIVEN GEAR

1шт.

3

5172047

DRIVEN GEAR

52T and 38T

1шт.

4

28995880

BALL BEARING,35mm ID x 80mm OD x 21mm W

35x80x21

1шт.

5

5122797

THRUST WASHER,35mm ID x 62mm OD x 6mm Thk

540 RPM

1шт.

6

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

4шт.

7

5188093

SYNCHRONIZER

2шт.

8

5172048

DRIVEN GEAR

1шт.

9

5145131

RIGID TUBE

M45x85x19

1шт.

10

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

11

5126458

BEARING, ROLLER, CYL,27.5mm ID x 52mm OD x 21mm W

1шт.

12

5160028

SHAFT

Shaft Driven, JX80, JX90

1шт.

13

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

JX80, JX90

1шт.
