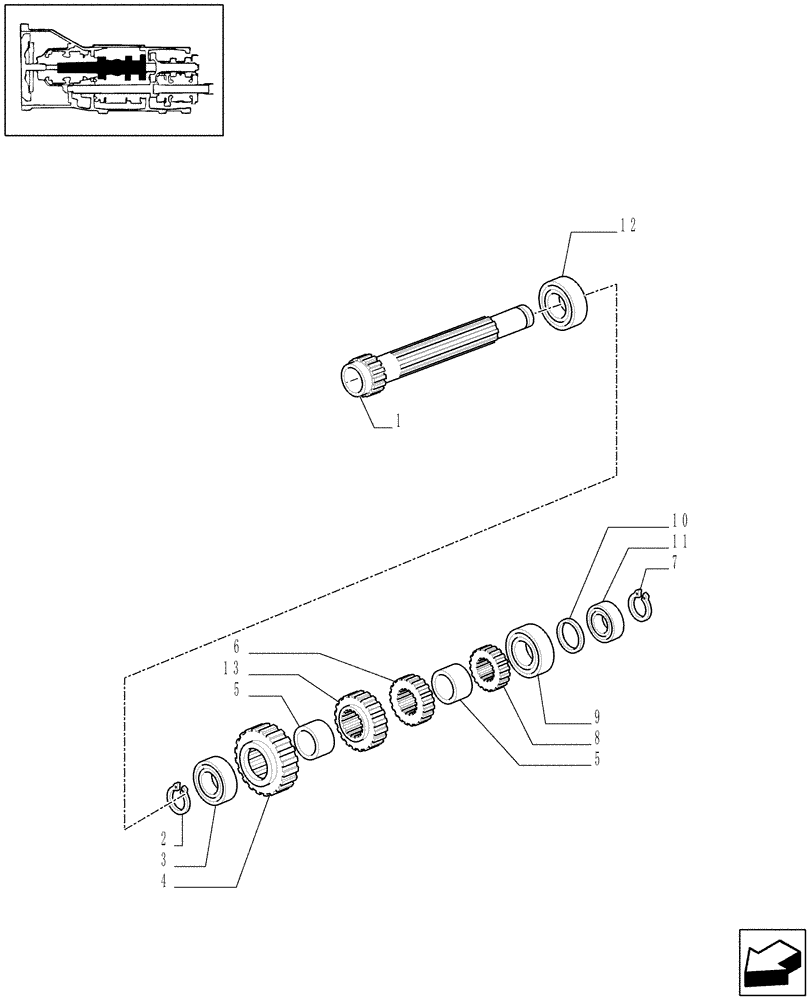

Запчасти Case IH JX95 (1.28.1/04[02A]) - (VAR.382) 20 X 12 COMBINATA ( SYNCHRO SHUTTLE + CREEPER) - SHAFTS AND GEARS - D6967 (03) - TRANSMISSION

1

5160658

MAIN SHAFT

1шт.

2

11062476

SNAP RING,M90, Int

1шт.

3

28996330

BALL BEARING,45mm ID x 85mm OD x 19mm W

1шт.

4

5123982

DRIVING GEAR

1шт.

5

5111983

SPACER,44.55mm ID x 55mm OD x 35mm L

2шт.

6

5169606

DRIVING GEAR

JX95

1шт.

7

11068876

SNAP RING,M40, Ext

1шт.

8

5118912

DRIVING GEAR

1шт.

9

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

40 x 90 x 23 mm, JX60, JX70

1шт.

10

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

40x90x23, JX80, JX90, JX95

1шт.

10

5109669

WASHER,40.05mm ID x 55mm OD x 3mm Thk

1шт.

10

5118937

WASHER,40.05mm ID x 55mm OD x 3.25mm Thk

1шт.

10

5118938

WASHER,40.05mm ID x 55mm OD x 3.5mm Thk

1шт.

10

5118939

WASHER,40.05mm ID x 55mm OD x 3.75mm Thk

1шт.

10

5118940

THRUST WASHER,40.05mm ID x 55mm OD x 4mm Thk

1шт.

11

5147070

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

1шт.

12

5097663

BALL BEARING,50mm ID x 90mm OD x 20mm W

1шт.

13

5179672

DRIVING GEAR

JX95

1шт.
