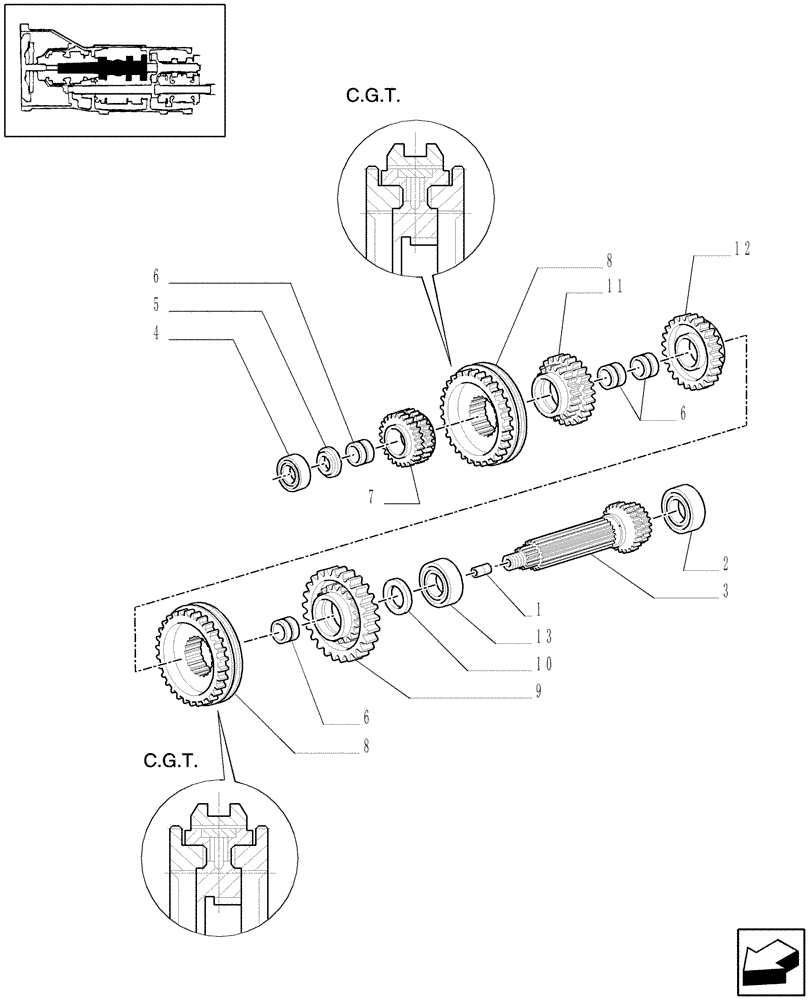

Запчасти Case IH JX95 (1.28.1/01[05]) - (VAR.113-115) 20X12 TRANSMISSION WITH SYNCHRO SHUTTLE AND CREEPER - SHAFTS AND GEARS (03) - TRANSMISSION

1

5145131

RIGID TUBE

M45x85x19

1шт.

2

5126458

BEARING, ROLLER, CYL,27.5mm ID x 52mm OD x 21mm W

27.5x52x21

1шт.

3

5160028

SHAFT

1шт.

4

28995880

BALL BEARING,35mm ID x 80mm OD x 21mm W

35x80x21

1шт.

5

5122797

THRUST WASHER,35mm ID x 62mm OD x 6mm Thk

540 RPM

1шт.

6

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

4шт.

7

5172050

DRIVEN GEAR

4th

1шт.

8

5188093

SYNCHRONIZER

2шт.

9

5172047

DRIVEN GEAR

1st, 52T and 38T

1шт.

10

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

11

5179673

DRIVEN GEAR

3rd

1шт.

12

5172048

DRIVEN GEAR

2nd

1шт.

13

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

40x90x23

1шт.
