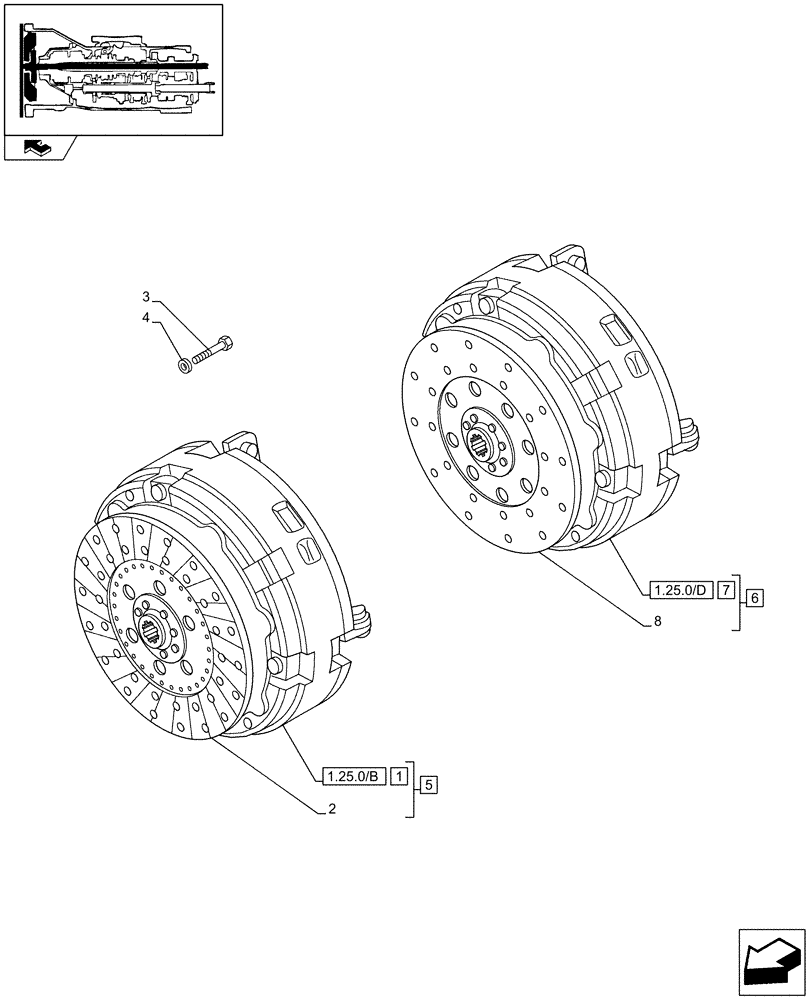

Запчасти Case IH JX95 (1.25.0[02]) - CLUTCH (03) - TRANSMISSION

1

5092803

CLUTCH & DISC ASSY,360mm OD

JX95

1шт.

5092803R

REMAN-CLUTCH PLATE

JX95

1шт.

5092803C

CORE-CLUTCH PLATE

Return Number

1шт.

2

5089337

CLUTCH PLATE,310mm OD

JX95

1шт.

5089337R

REMAN-CLUTCH PLATE

JX95

1шт.

5089337C

CORE-CLUTCH PLATE

Return Number

1шт.

3

15971824

SCREW,Hex, M10 x 1.25 x 100mm, Cl 8.8

JX95

6шт.

4

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

JX95

6шт.

5

5092802

CLUTCH & DISC ASSY

JX95, Years: -18-APR-10

1шт.

5092803R

REMAN-CLUTCH PLATE

Reman for New PN 5092802, Years: -18-APR-10

1шт.

5092803C

CORE-CLUTCH PLATE

Return Number, Years: -18-APR-10

1шт.

6

84177331

CLUTCH & DISC ASSY

JX95, ASSY, Incl 7, 8, Start Year: 19-APR-10

1шт.

CNH Parts Option

1шт.

7

84177332

CLUTCH & DISC ASSY,360mm OD

JX95

1шт.

CNH Parts Option

1шт.

8

84177335

CLUTCH PLATE,310mm OD

JX95

1шт.

CNH Parts Option

1шт.
