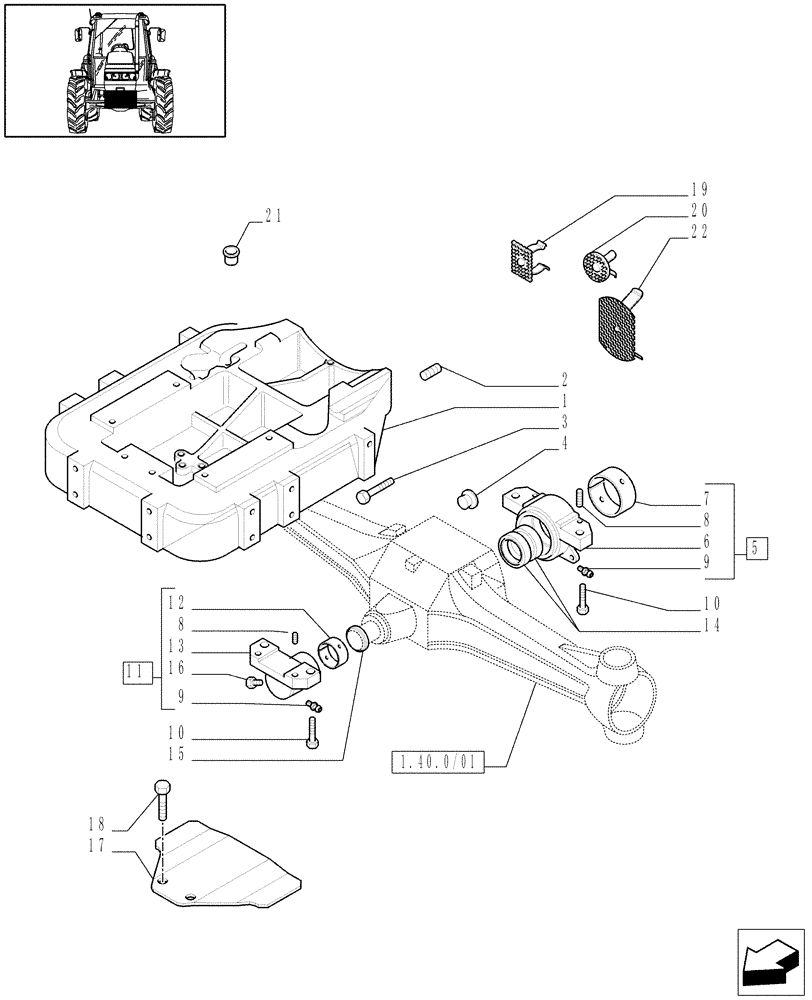

Запчасти Case IH JX95 (1.21.1) - 2WD/4WD SUPPORT (03) - TRANSMISSION

1

5097743

AXLE SUPPORT

4WD

1шт.

1

5097744

AXLE SUPPORT

2WD

1шт.

2

4668595

DOWEL,18mm OD x 22mm L

2WD/4WD

2шт.

3

5125208

BOLT,Hex, M18 x 1.5 x 75mm

2WD/4WD

4шт.

4

590353

PLUG,15mm OD x 10mm High, Plastic

2WD/4WD

10шт.

5

5149418

SUPPORT

JX60, JX70

1шт.

5

5140454

SUPPORT

JX80, JX90, JX95

1шт.

6

5111877

SUPPORT

JX60, JX70

1шт.

6

5140453

SUPPORT

JX80, JX90, JX95

1шт.

7

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

1шт.

8

10837710

DOWEL,M10 x 25

4шт.

9

13407211

LUBE NIPPLE,M10 x 1

JX60, JX70

2шт.

9

13407214

LUBE NIPPLE,M10 x 1

JX80, JX90, JX95

1шт.

10

14272034

LOCK BOLT,Hex, M18 x 1.5 x 65mm, Cl 10.9

4шт.

11

5111886

SUPPORT

JX60, JX70

1шт.

11

5140452

SUPPORT

JX80, JX90, JX95

1шт.

12

5101112

BUSHING,52.72mm ID x 57.16mm OD x 42mm L

1шт.

13

5111874

SUPPORT

JX60, JX70

1шт.

13

5140451

SUPPORT

JX80, JX90, JX95

1шт.

14

5140455

SEALING RING,99mm ID x 115mm OD x 7,5mm Thk

JX80, JX90, JX95

2шт.

15

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

JX80, JX90, JX95

1шт.

16

13411117

VALVE PRESSURE RELIE,M10, Black

JX80, JX90, JX95

1шт.

17

5095623

PLATE

JX80, JX90, JX95

1шт.

For High Clearance Version

1шт.

18

15540321

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

JX80, JX90, JX95

2шт.

For High Clearance Version

1шт.

19

84281507

GUARD

2шт.

20

84271383

GUARD

2шт.

21

87573793

CUP PLUG,7mm OD, 7mm High, 0.80mm Thk

4шт.

22

84271368

GUARD

JX60, JX70

2шт.
