Запчасти Case IH JX95 (1.17.0[03]) - RADIATOR - CAP AND BRACKET - C5834 (02) - ENGINE EQUIPMENT

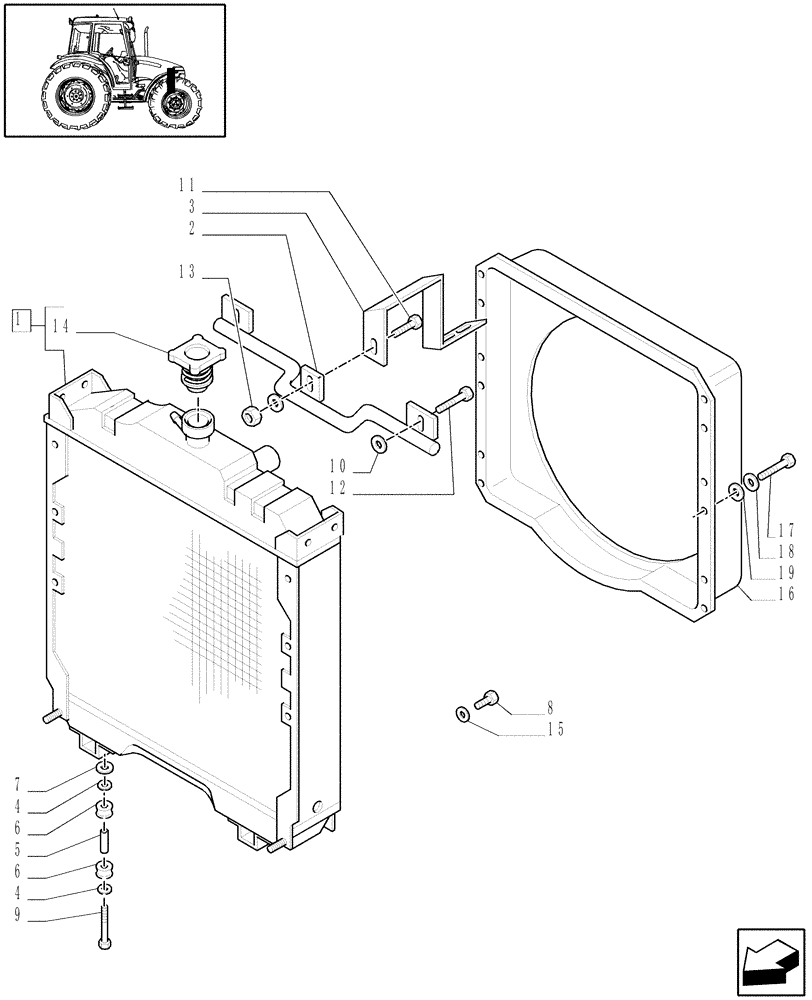

Схема запчастей Case IH JX95 - (1.17.0[03]) - RADIATOR - CAP AND BRACKET - C5834 (02) - ENGINE EQUIPMENT
4
5
6
13
8
4
10
2
14
17
7
16
12
15
18
19
3
6
1
9
11

Артикул

Название

Примечание

Количество

1

5096595

RADIATOR

Assy

1шт.

2

87599283

SUPPORT

1шт.

3

87599285

SUPPORT

3шт.

4

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

4шт.

5

5102703

SPACER,11mm ID x 15mm OD x 63mm L

2шт.

6

5108225

RUBBER MOUNTING

4шт.

7

11198379

SPRING WASHER,10.5mm ID x 20mm OD x 2.6mm Thk

2шт.

8

13274211

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd

2шт.

9

15971721

SCREW,Hex, M10 x 1.25 x 95mm, Cl 8.8

2шт.

10

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

6шт.

11

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

12

16044721

SCREW,Hex, M8 x 75mm, Cl 8.8

2шт.

13

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

14

83935905

RADIATOR CAP

1шт.

15

12643704

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

2шт.

16

5090561

GUARD

1шт.

17

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

6шт.

18

10571579

LOCK WASHER,M6

6шт.

19

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

Выбрано товаров: 19
